10.1 Inch Car Display Monitor 105A AU Connector

Product Price
$ 35.57 In Stock
SKUTY001603
MOQ1
KG/Piece2.50 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Plug Type AU US UK EU USB
Quantity

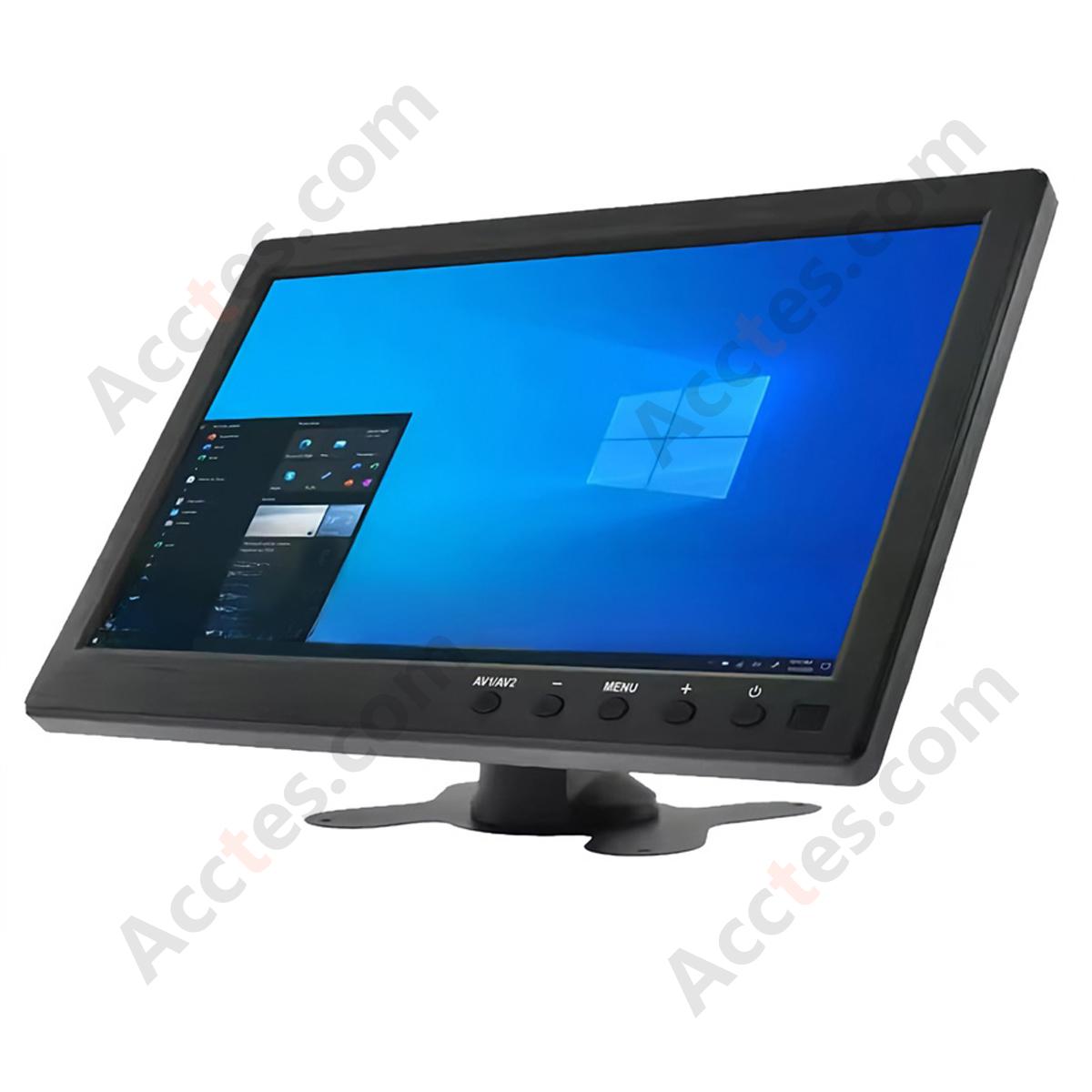

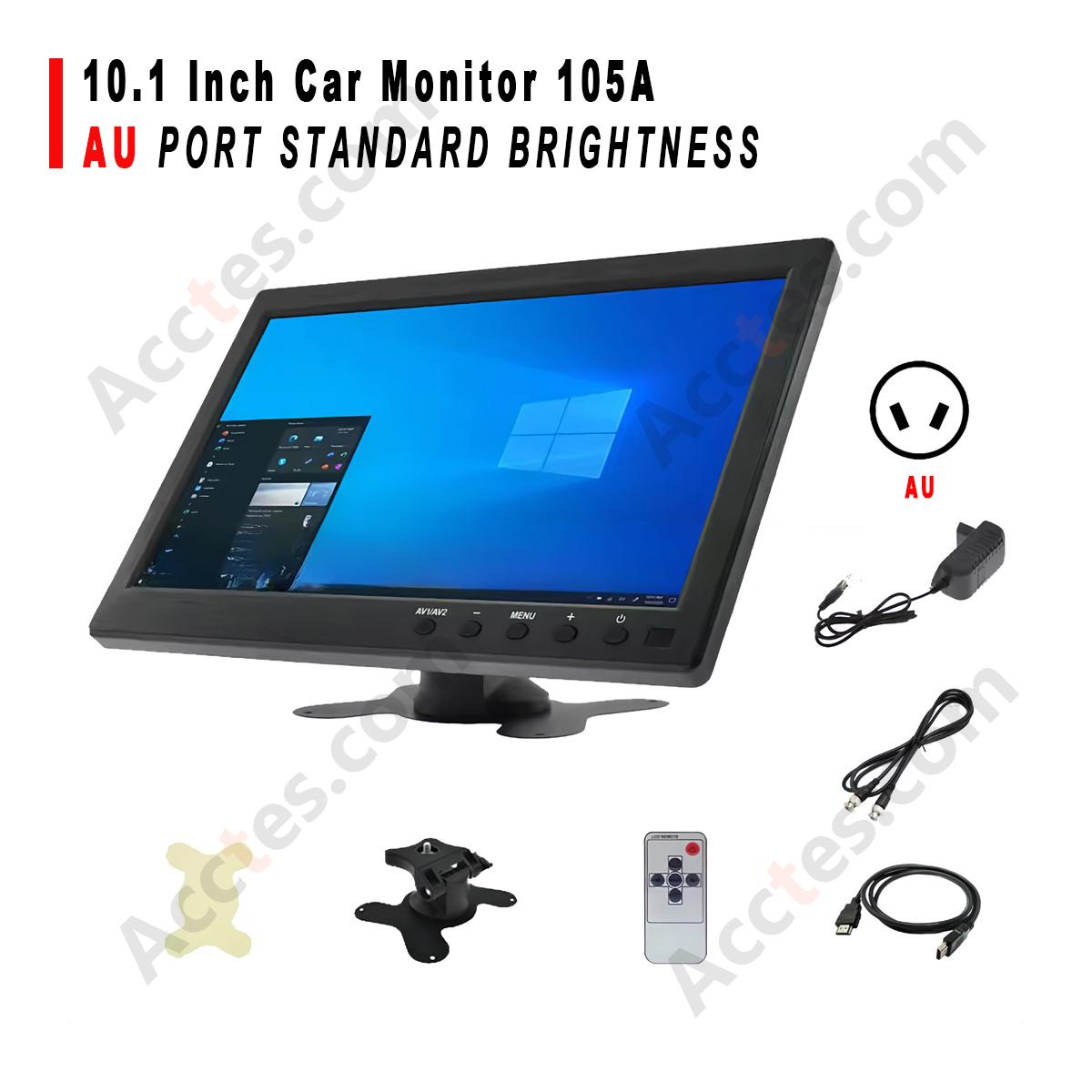

10.1 Inch 105A AU Connector Car Display Monitor

4、Car Electronics.jpg

Product Overview

The 105A 10.1 Inch Car Display Monitor with AU connector is a high-performance vehicle display solution designed for modern automotive applications. Balancing visual clarity, functional flexibility, and rugged environmental tolerance, this standard brightness display fits seamlessly into most vehicle center console layouts, making it an ideal choice for both OEM integration and aftermarket upgrades.

Engineered to withstand the harsh conditions of automotive use—from extreme temperature fluctuations to vibration and sun exposure—this display delivers consistent performance for navigation, vehicle monitoring, rearview cameras, and infotainment applications.

Key Features

  • ✅ 10.1-inch TFT-LCD display with 1024×600 HD resolution for crisp, clear visuals

  • ✅ Standard brightness ≥700 cd/m² for excellent visibility even in bright daylight

  • ✅ Full 178° wide viewing angle for all passengers

  • ✅ Responsive capacitive multi-touch for intuitive interaction

  • ✅ 8 programmable physical buttons for quick access to custom functions

  • ✅ Supports 1 to 4 channel video input (compatible with AHD 720P, CVBS, TVI, CVI, and IPC signals)

  • ✅ CODESYS programming support with RJ45 Ethernet and WiFi programming options

  • ✅ USB port for easy firmware upgrades and data transfer

  • ✅ Optional features: Bluetooth hands-free calling, Bluetooth audio streaming, FM radio, and 4G LTE connectivity

  • ✅ Built-in buzzer for audible alerts and built-in microphone for voice commands/calls

  • ✅ Wide 9-32V DC input voltage compatible with most passenger cars, trucks, and commercial vehicles

  • ✅ Rugged engineering plastic enclosure for long-term durability

Technical Specifications

SpecificationDetails
Model Number105A
Screen Size10.1 Inch
Display TypeTFT-LCD IPS
Resolution1024 × 600 Pixels
Aspect Ratio16:9
Brightness≥700 cd/m² (Standard Brightness)
Viewing Angle89°/89°/89°/89° Full Wide Viewing Angle
Touchscreen TypeCapacitive Multi-Touch
ProcessorDual Core Cortex A7 @ 1GHz
Memory & Storage512MB DDR3, 4GB eMMC
Connector TypeAU Port Connector
Communication Interfaces2 x CAN Bus, 1 x RJ45 Ethernet, USB, AU Port, optional RS232/RS485
Physical Dimensions207.5 × 173.3 × 48.3 mm
Working Voltage9-32V DC
Working Temperature-30°C ~ +70°C
Storage Temperature-40°C ~ +85°C

Applications & Use Cases

  • 🚗 Passenger vehicle center console infotainment and navigation

  • 🚛 Heavy-duty trucks and commercial vehicle instrument displays

  • 🚌 Bus and coach multi-channel surveillance monitoring

  • 🏗️ Construction and agricultural equipment cabin displays

  • 🚐 RV and camper van multimedia control screens

  • 🚙 Aftermarket rearview camera and 360° parking assist display

  • ✈️ Specialty vehicle and emergency service vehicle monitoring systems

  • 👨‍💻 Passenger rear-seat entertainment headrest displays

Package Contents

  • 1 x 10.1 Inch 105A AU Connector Car Display Monitor

  • 1 x Wiring Harness with AU Connector

  • 1 x Mounting Hardware Kit for Panel Installation

  • 1 x User Manual

This 10.1-inch AU port car display is built for reliable long-term performance in automotive environments. Its balanced size, high brightness, and flexible interface options make it suitable for a wide range of vehicle display applications from basic infotainment to complex vehicle monitoring systems.
