| SKU | TY001636 |
| MOQ | 1 |
| KG/Piece | 0.10 KG |
| Returns | 30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount. See details |

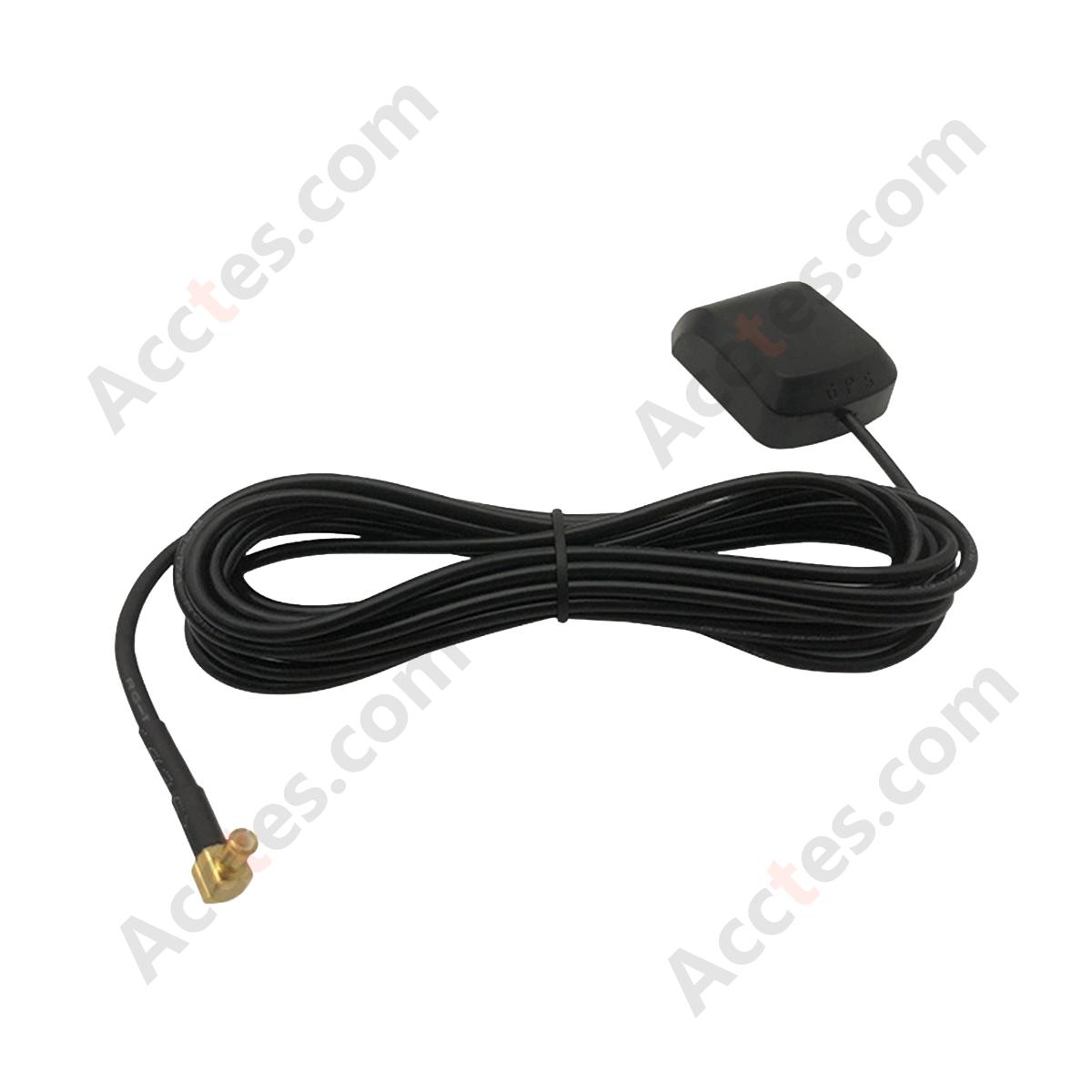

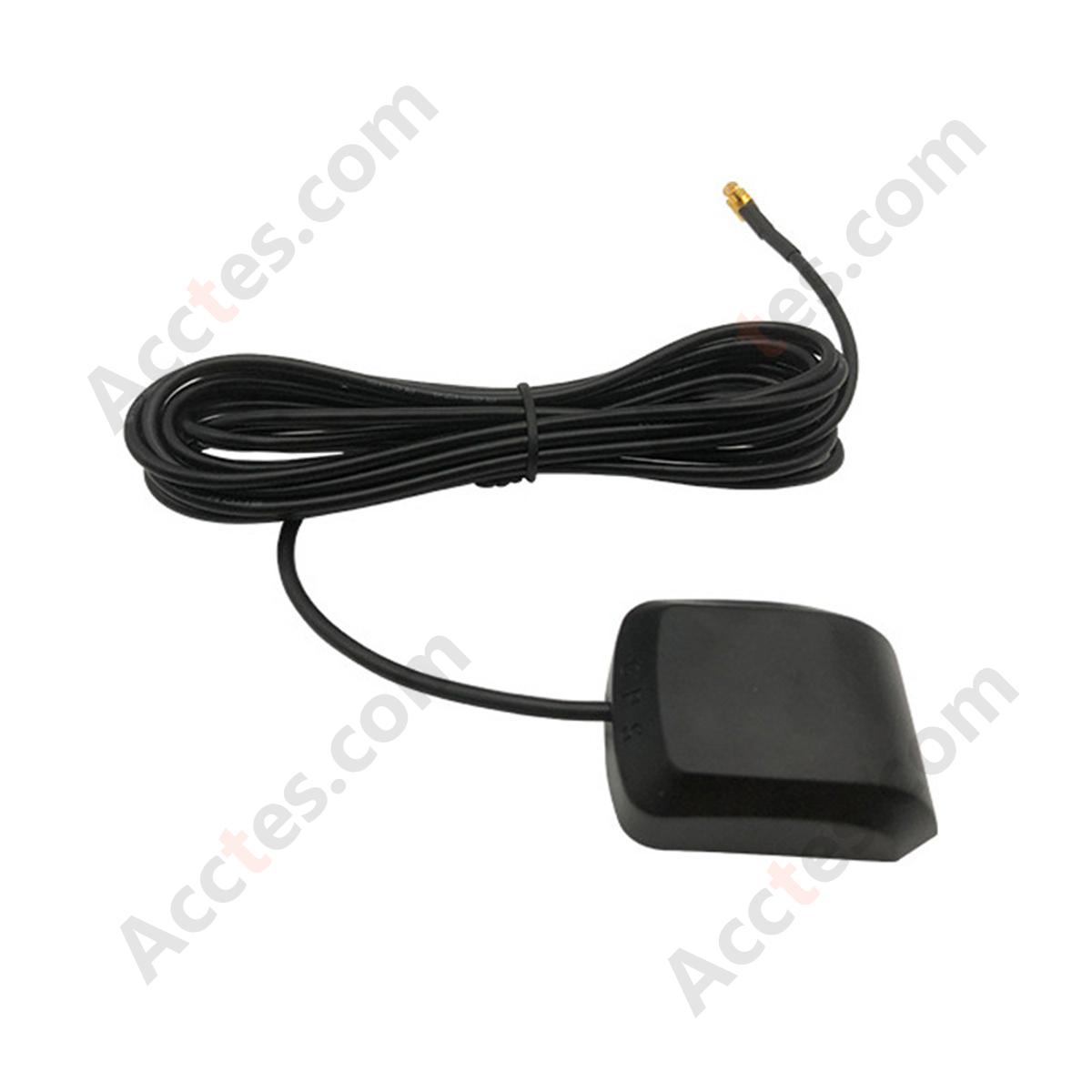

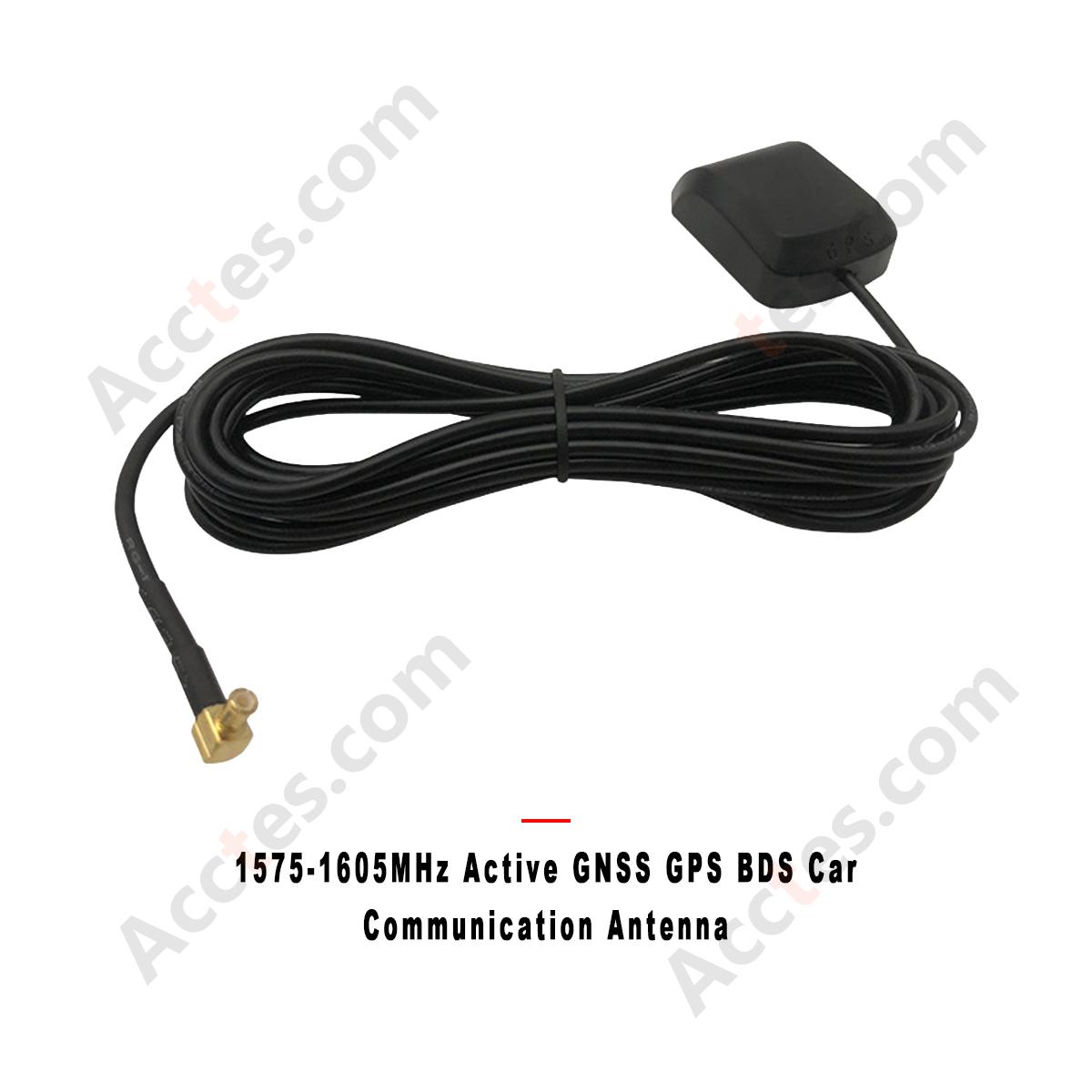

This high-performance active GNSS antenna is designed specifically for vehicle positioning and navigation applications, supporting both GPS L1 and BDS B1 satellite signals within the 1575-1605MHz frequency range. Built with integrated low-noise amplification and premium materials, it delivers reliable, high-accuracy signal reception for automotive navigation, fleet tracking, and precision location systems.
Featuring a compact, low-profile design with multiple mounting options (magnetic adsorption or adhesive backing), this antenna provides a non-penetrating installation that minimizes drag while maintaining a secure hold on vehicle metal surfaces. The right-hand circular polarization (RHCP) design effectively reduces multi-path interference from ground reflections, improving positioning accuracy even in challenging environments.
✅ Supports simultaneous GPS L1 (1575.42MHz) and BDS B1 (1561.09MHz) signal reception
✅ Integrated high-gain low-noise amplifier (LNA) with 28dB ±3dB typical gain
✅ Ultra-low noise figure (≤1.5dB - 2.5dB typical) for improved signal sensitivity
✅ Right Hand Circular Polarized (RHCP) for reduced multi-path error and improved signal reliability
✅ Weatherproof IPX6 rated construction for outdoor and automotive use
✅ Secure mounting options: neodymium rare-earth magnet mount or 3M adhesive backing
✅ Low profile, low drag design ideal for vehicle roof installation
✅ Standard 50Ω impedance matching for compatibility with most GNSS receivers
✅ Low power consumption: operating current ≤20mA
✅ Wide operating temperature range: -40°C to +85°C for all climate conditions
✅ Premium RG174 low-loss coaxial cable with multiple connector options (SMA Male, Fakra, MMCX)
| Frequency Range | 1559MHz - 1605MHz |
| Center Frequencies | GPS L1: 1575.42MHz | BDS B1: 1561.09MHz |
| Antenna Gain | 2.1dBi - 4dBi (antenna element) | 28dB - 31.5dB (including LNA) |
| Polarization | Right Hand Circular Polarization (RHCP) |
| Axial Ratio | ≤ 3.0dB |
| VSWR | ≤ 1.5:1 - 2.0:1 typical |
| Impedance | 50 Ohm |
| Noise Figure | ≤ 1.5dB - 2.5dB typical |
| Operating Voltage | DC 3V - 5V |
| Operating Current | ≤ 12mA - 20mA typical |
| Cable Type | RG174 Low-Loss Coaxial Cable |
| Connector Options | SMA Male, Fakra-C, MMCX Male, BNC, GT-5, SMB |
| Housing Material | Durable UV-resistant PC / Aluminum |
| Ingress Protection | IPX6 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Weight | 69g - 80g typical |
| Compliance | CE, FCC, RoHS, ISO 9001 |
Automotive in-dash navigation systems
Vehicle fleet tracking and management
Commercial vehicle telematics systems
Precision agriculture positioning systems
Mining and construction vehicle guidance
Law enforcement and public safety vehicles
Car GPS tracking and security systems
Marine navigation and positioning
High accuracy surveying and mapping
Aftermarket automotive navigation upgrades
Compatible with Toyota, Honda, Nissan and other passenger vehicles
IoT location-based tracking systems
1 x 1575-1605MHz Active GNSS GPS BDS Vehicle Antenna
Pre-attached RG174 coaxial cable with selected connector
Mounting hardware (magnet base or adhesive backing per variant)
Note: Please specify your required connector type and cable length when ordering. Bulk orders and custom configurations are available upon request.
