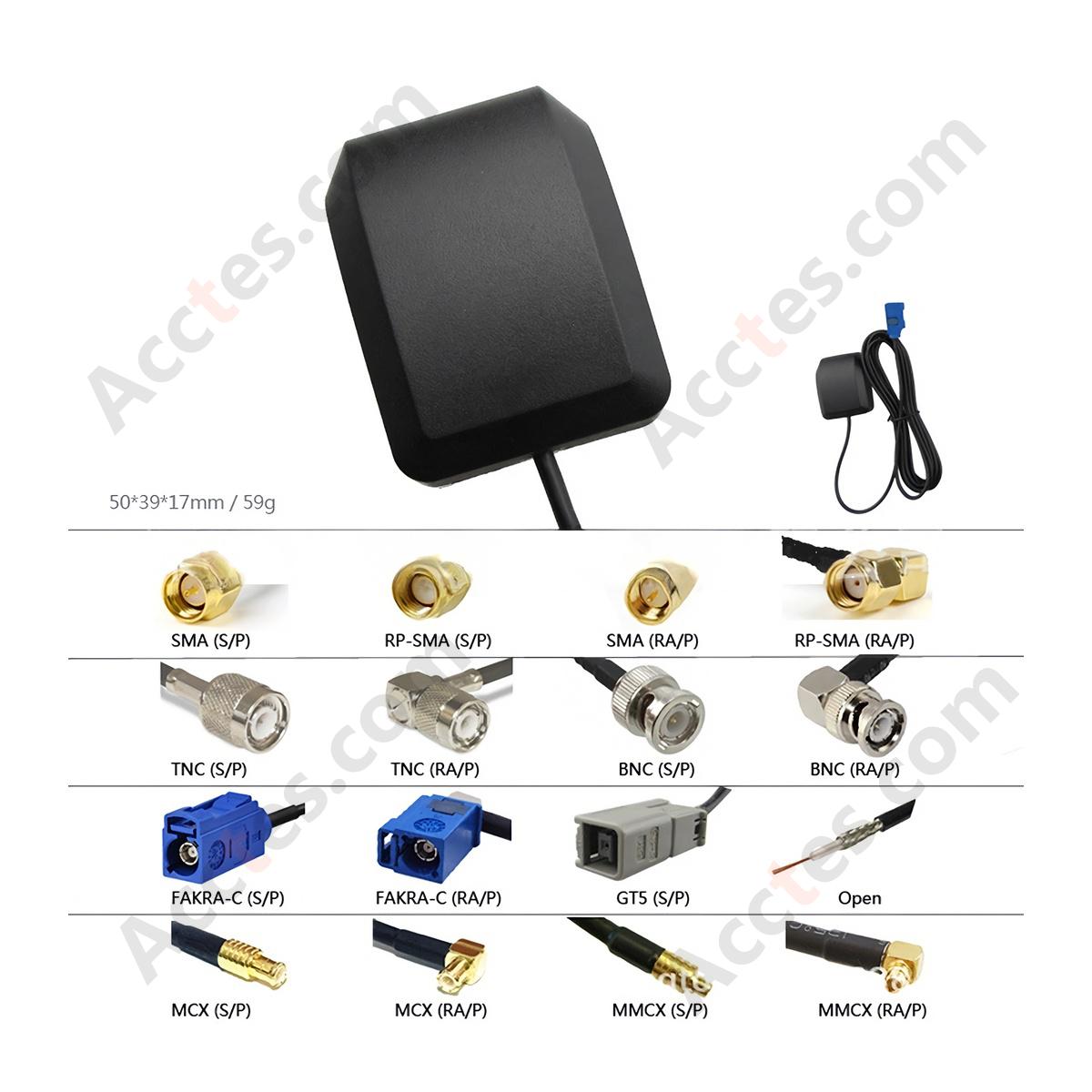

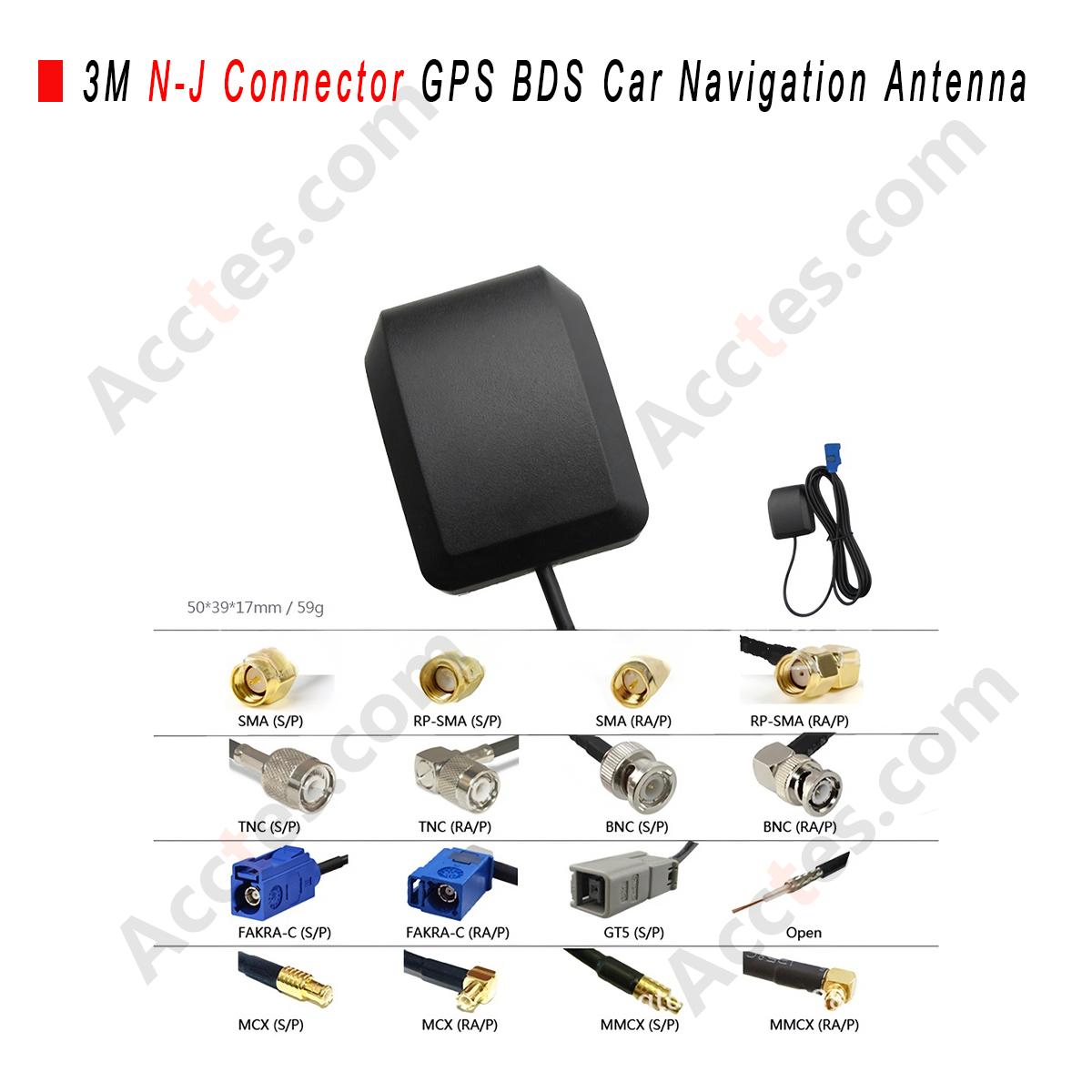

3M N‑J Connector GPS BDS Car Navigation Antenna

Product Price
$ 3.71 In Stock
SKUTY001620
MOQ1
KG/Piece0.10 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Connector Type SMA Inner Pin N-J FAKRA-C
Quantity

3M N-J Connector GPS BDS Car Navigation Antenna

4、Car Electronics.jpg

Product Overview

The 3M N-J Connector GPS BDS Car Navigation Antenna is a high-performance active multi-constellation positioning antenna designed specifically for automotive navigation and precision tracking applications. Engineered to deliver reliable signal acquisition even in obstructed environments like urban canyons, tunnels, and remote mountainous areas, this antenna solves common issues of inaccurate positioning and dropped navigation signals that plague factory-installed and low-quality aftermarket antennas.

With 3 meters of high-purity copper shielded cable, it allows flexible placement for optimal signal reception, while supporting both GPS and Beidou (BDS) satellite constellations for consistently accurate positioning across diverse operating conditions. It is compatible with most aftermarket navigation systems, Android car stereos, and commercial vehicle tracking equipment.

Key Features

  • ✅ Dual Constellation Support: Compatible with both GPS (1575.42MHz) and BDS Beidou (1561.09MHz) for expanded satellite coverage and improved positioning accuracy

  • ✅ 3 Meter (9.8ft) Shielded Cable: High-purity pure copper core with aluminum foil shielding minimizes signal loss, enables flexible optimal antenna placement anywhere on the vehicle

  • ✅ High Gain Active Amplifier: Built-in low-noise amplifier boosts signal strength for reliable lock even in weak signal environments

  • ✅ Right-Handed Circular Polarization: Optimized for satellite signal reception with excellent interference rejection

  • ✅ Weather Resistant Design: Operates reliably across a wide temperature range and 100% humidity, suitable for all climate conditions

  • ✅ Multiple Connector Options: Available in N-J, SMA male, Fakra C, and TNC-F interfaces to fit most common navigation devices and head units

  • ✅ Easy Installation: Optional magnetic mounting base allows quick, secure installation without permanent modifications

Technical Specifications

SpecificationValue
Frequency Range1575±5MHz (GPS L1), 1561.09MHz (BDS)
PolarizationRight-Handed Circular Polarization (RHCP)
Antenna Gain3.5dBic at zenith; -3dBic at 10°
Amplifier Gain27dB
Noise Figure1.5dB
VSWR< 1.5
Interference Suppression20dB (fo±140MHz)
Input Voltage5 ± 0.5 VDC
Current Consumption12mA typical
Impedance50Ω
Cable Length3 meters (9.8 feet)
Connector TypeN-J (SMA, Fakra C, TNC-F available upon request)
Operating Temperature-45°C to 85°C (-49°F to 185°F)
Storage Temperature-50°C to 90°C (-58°F to 194°F)
Humidity Rating100% rated
Weight~115g (0.25lb)

Common Applications & Use Cases

🚗 Automotive Navigation

  • Aftermarket Android car stereo upgrades

  • Factory navigation system signal improvement

  • In-car DVD navigation systems

  • Passenger vehicle daily driving and road trips

🚛 Commercial Vehicle Tracking

  • Fleet management and telematics systems

  • Logistics and delivery vehicle tracking

  • Heavy equipment positioning

  • Public transport navigation

🌲 Outdoor & Remote Use

  • Off-road and overland navigation

  • Outdoor surveying and mapping

  • Precision agriculture positioning

  • Mountain and remote area travel

🏙️ Challenging Signal Environments

  • Urban canyons and dense downtown areas

  • Tunnel and underpass navigation

  • Forested and hilly terrain

  • High-density metropolitan areas

Package Contents

  • 1 x 3M N-J Connector GPS BDS Car Navigation Antenna

Upgrade your vehicle's navigation performance today with reliable multi-constellation signal reception, even in the most challenging driving conditions.
