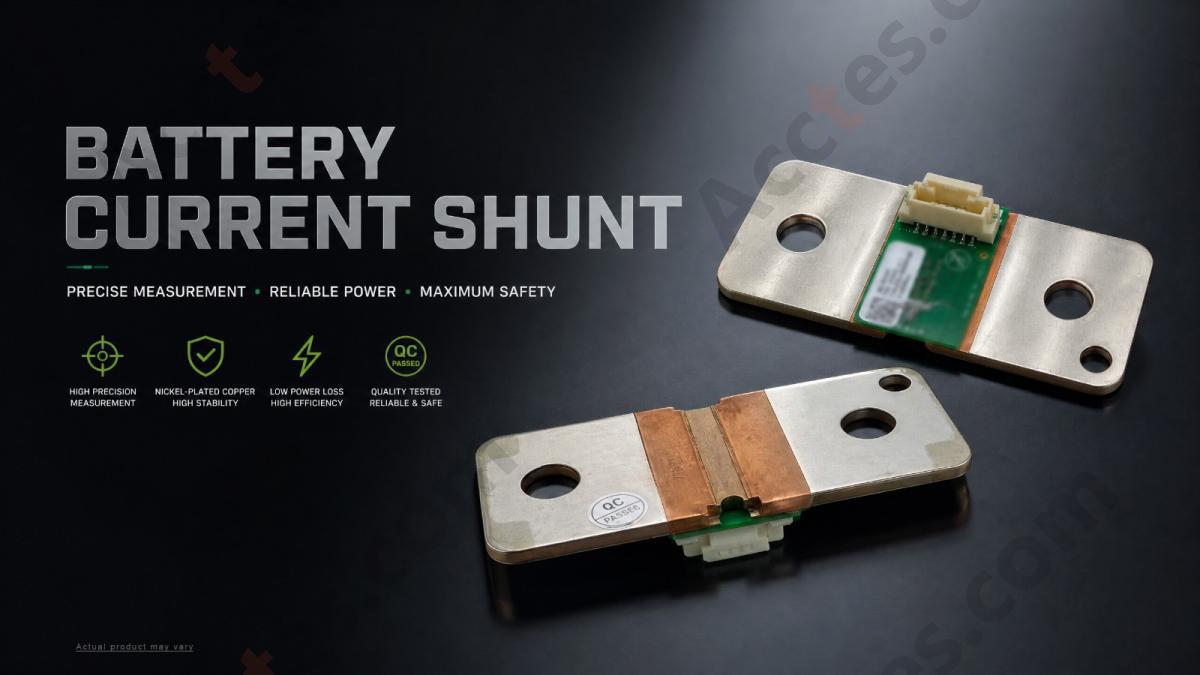

For Tesla Model Y 2020 Battery Shunt 1078835-00-G

Product Price
$ 42.86 In Stock
SKUAT100485
MOQ1
KG/Piece0.30 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Quantity

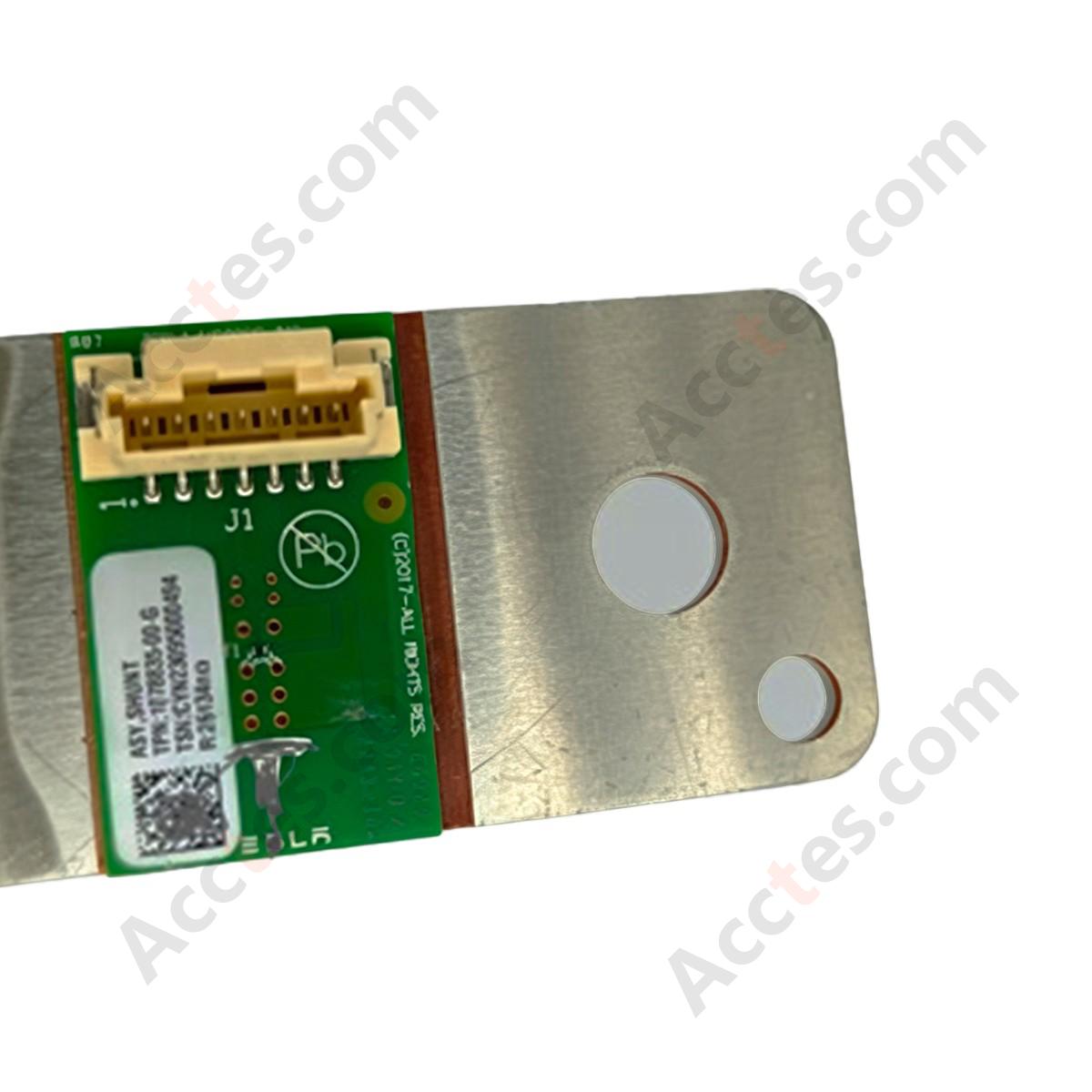

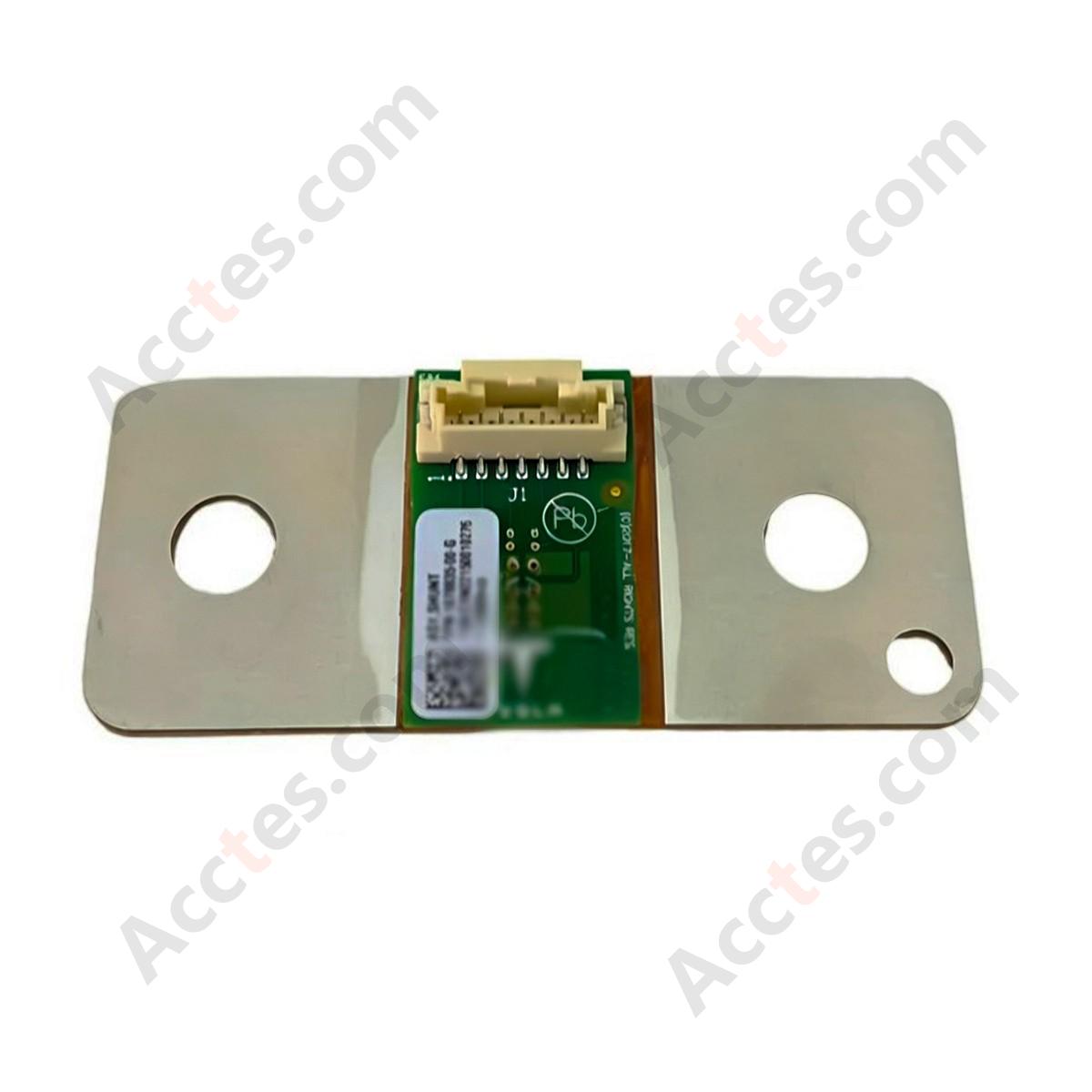

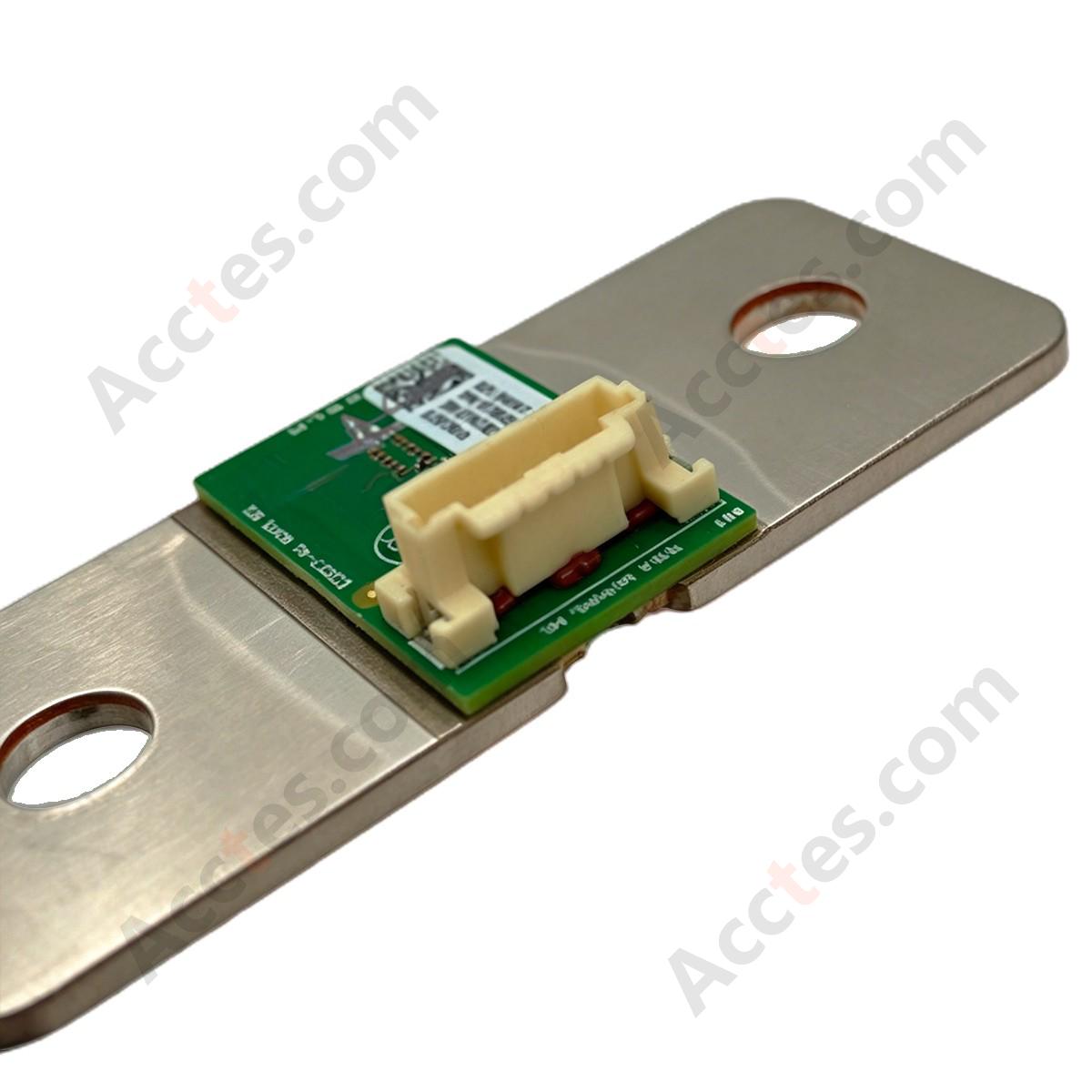

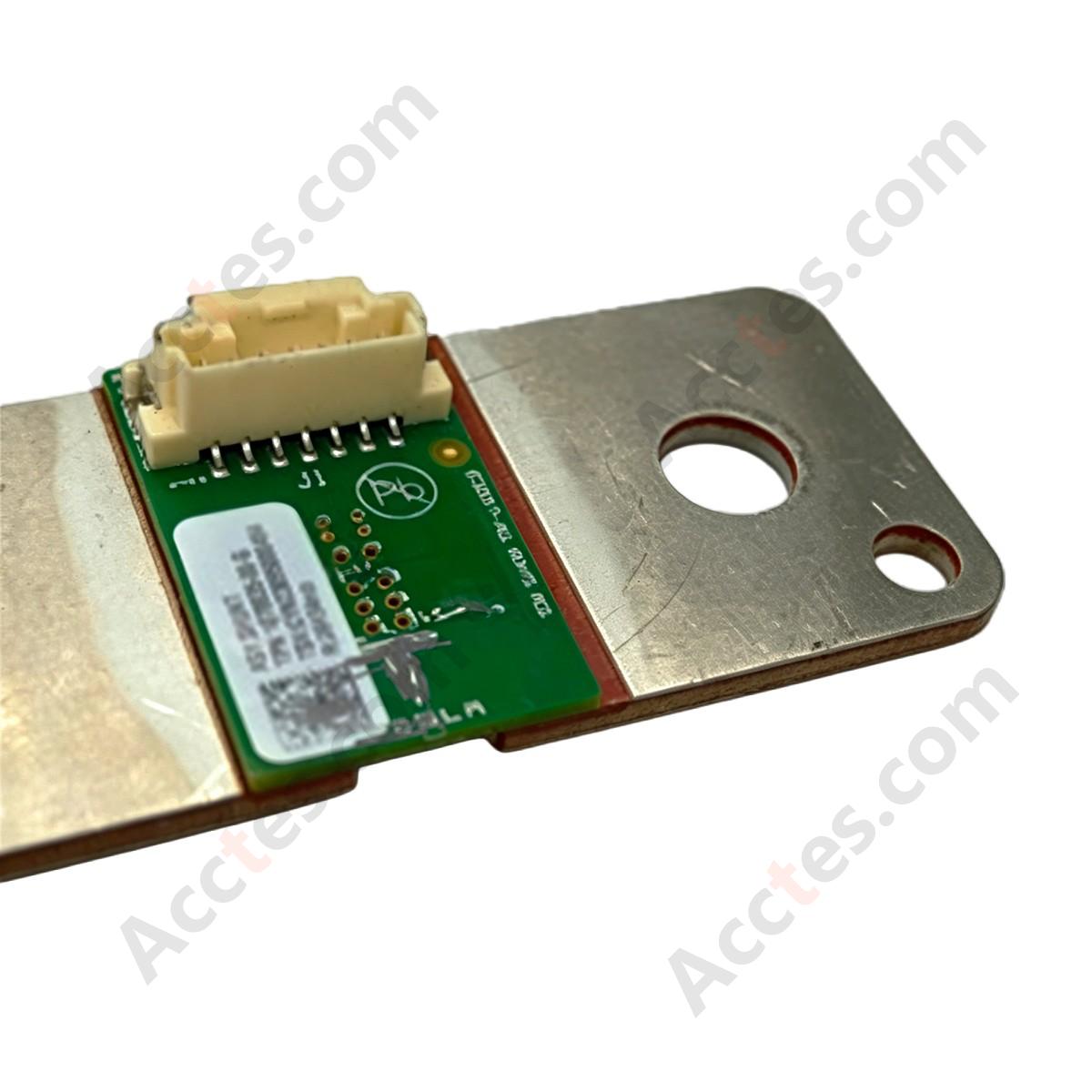

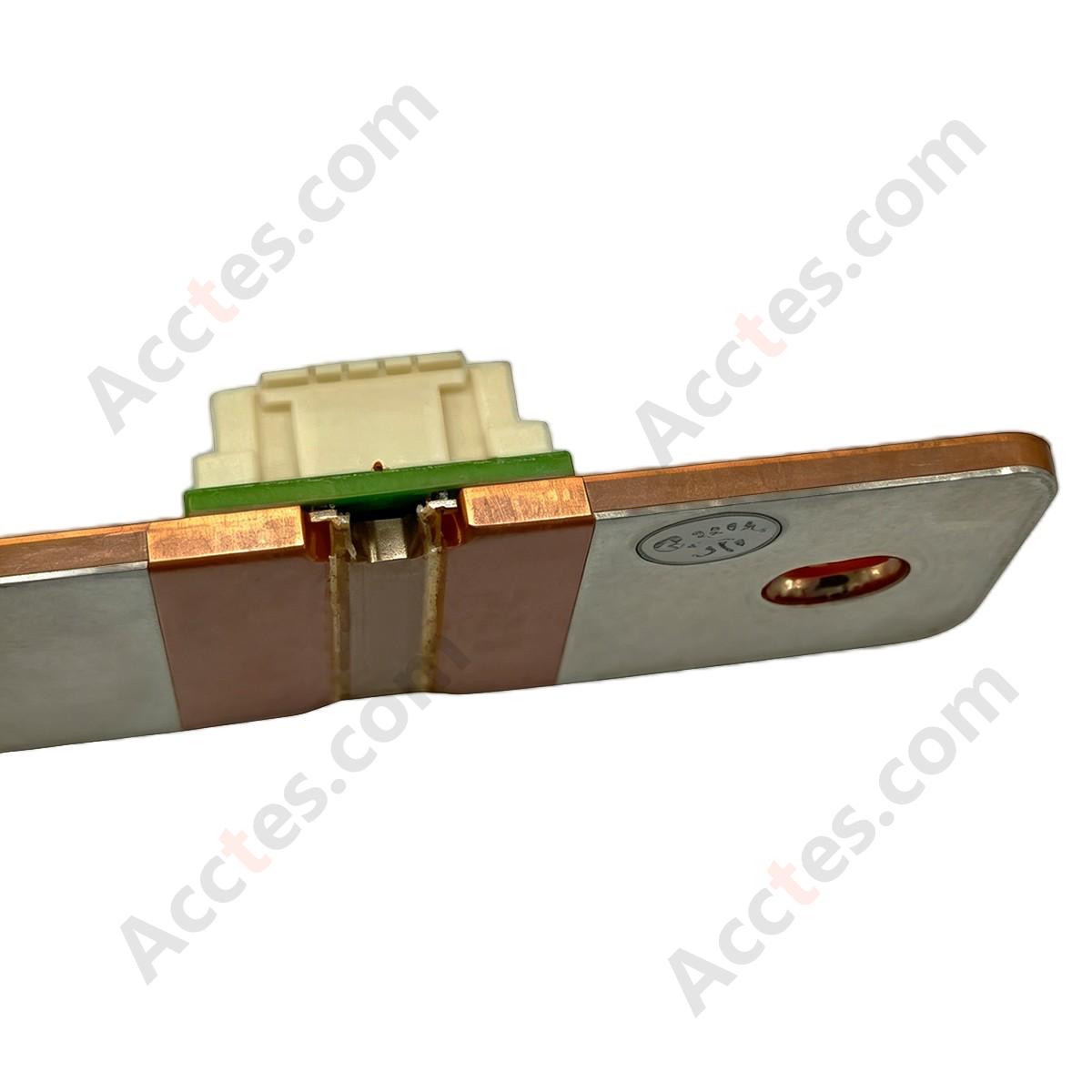

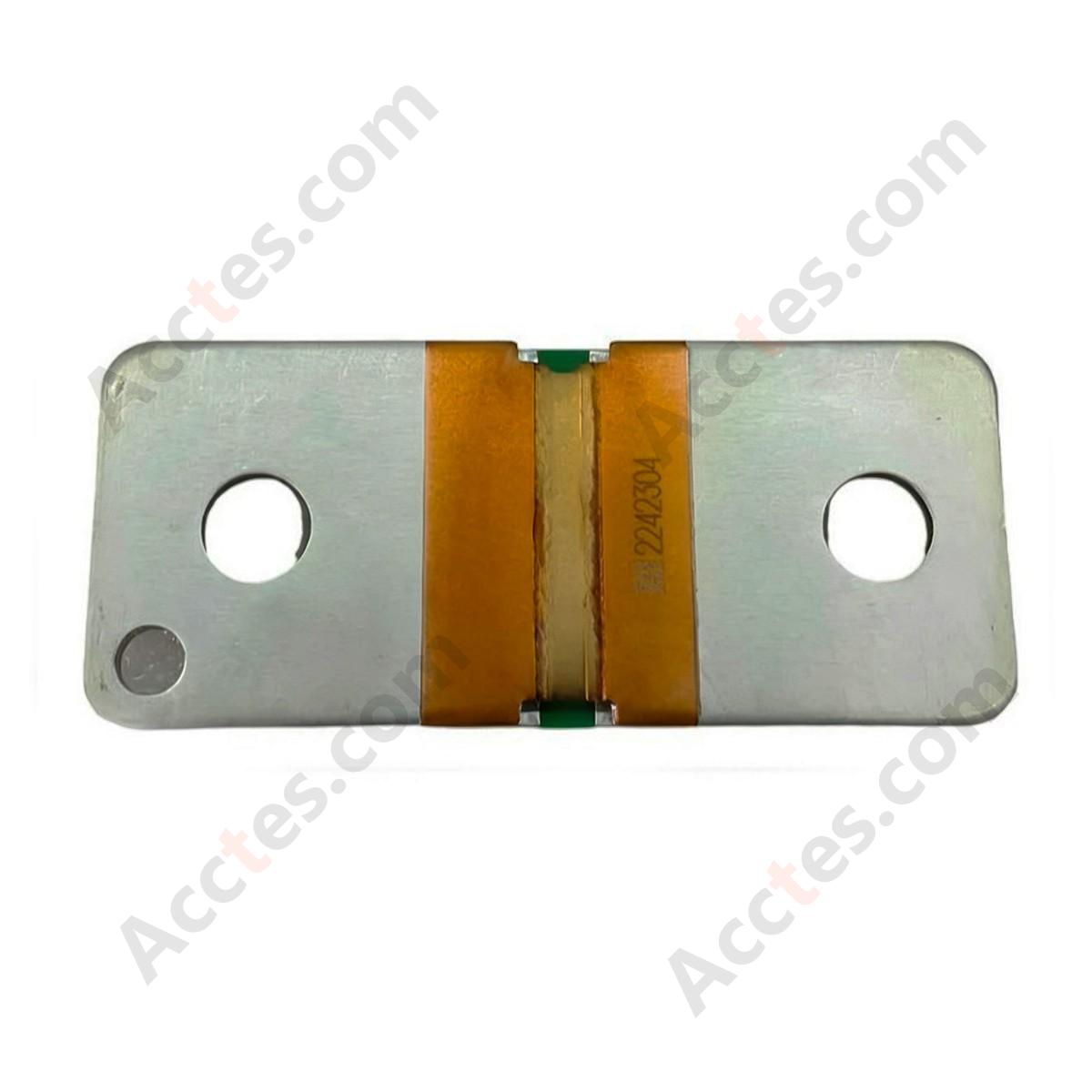

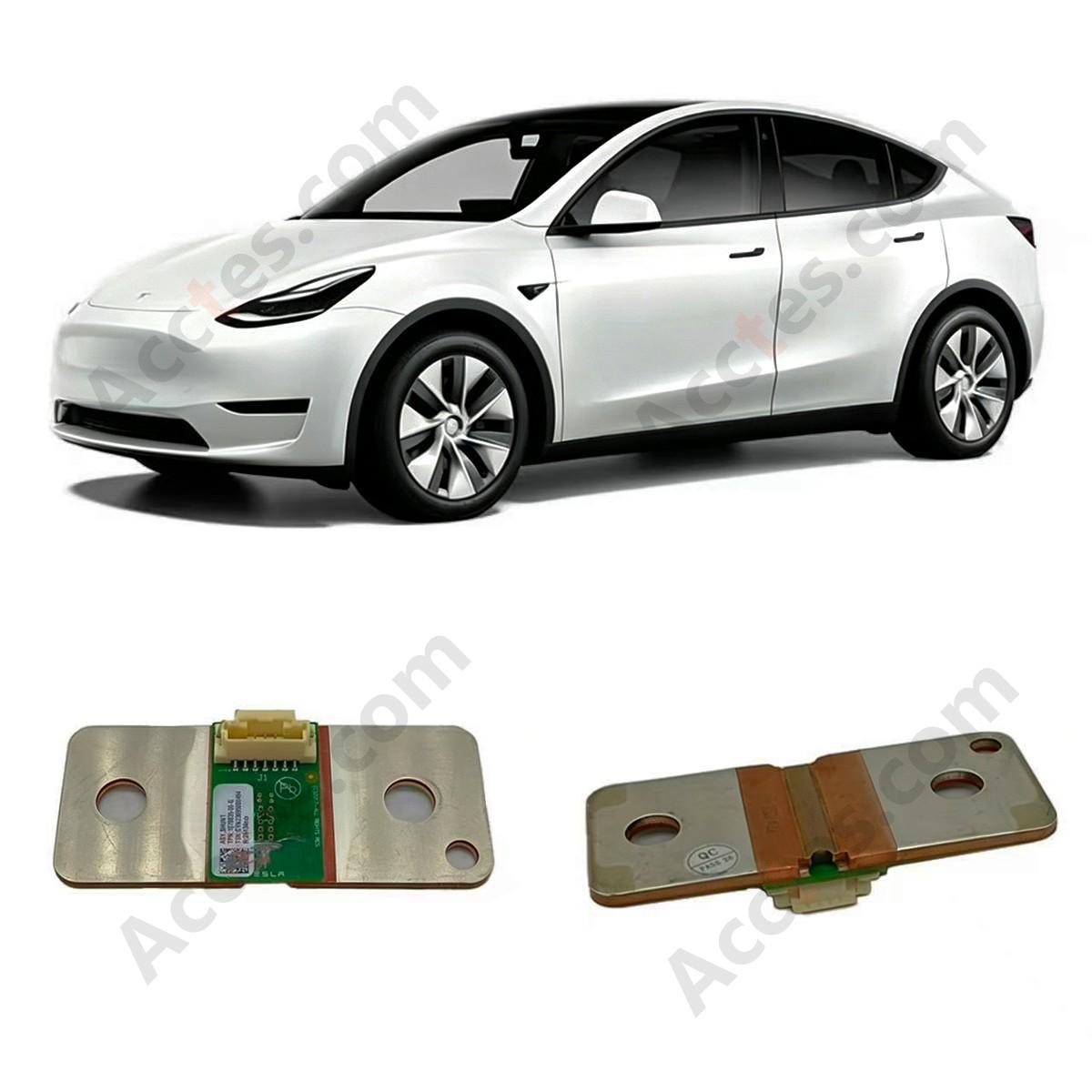

FOR Tesla Model 3 / Model Y HV Battery AMP Chip Shunt Plate Module 1078835-00-G

Product Overview

This high-quality HV Battery AMP Chip Shunt Plate Module is a direct OEM-replacement component engineered for Tesla Model 3 (2016-2025) and Model Y (2020-2025) high voltage battery systems. Also known as a battery sampling shunt or current sensor, this critical component enables accurate current measurement and battery health monitoring for your Tesla's Battery Management System (BMS).

Manufactured to meet or exceed original factory specifications with durable aluminum alloy construction, this shunt module provides precise current sampling required for proper battery performance, accurate state of charge calculation, and reliable battery health assessment.

This specific part matches the Cyntec OEM manufacturer variant, the original supplier for Tesla with part number format 1078835-XX-X.

📋 Product Specifications

SpecificationDetails
OE Part Number1078835-00-G (also referenced as 107883500G)
Manufacturer VariantCyntec (OEM original manufacturer specification)
Compatible VehiclesTesla Model 3 (2016-2025), Tesla Model Y (2020-2025) all variants
Compatible DrivetrainsRWD Single Motor, AWD Dual Motor all models
Product TypeHV Battery Current Sensor / Battery Sampling Shunt Plate Module
MaterialHigh-grade Aluminum Alloy
Acceptable Resistance Range0.050mΩ (50 microohms) to 0.195mΩ (195 microohms)
Current RatingUp to 50 Amps
ApplicationHigh Voltage Battery Non-Structural Pack

✅ Key Features

  • Direct OEM replacement matching original factory specifications for perfect fit and plug-and-play installation

  • Constructed from durable aluminum alloy for long-term electrical and mechanical reliability

  • Enables accurate current measurement for the Battery Management System (BMS)

  • Supports precise battery health calculation and consistent state of charge (SoC) monitoring

  • Required for accurate high voltage battery performance, calibration, and diagnostic testing

  • Built to meet strict OEM electrical resistance tolerance requirements for stable operation

  • Meets all Tesla performance and safety standards for high voltage battery system components

🔧 Installation & Safety Guidelines

  • Critical Safety Warning: Only certified technicians who have completed Tesla high voltage certification training should perform this repair. This procedure is not mobile capable and requires proper shop equipment.

  • Always wear proper personal protective equipment (PPE) including Class 0 (1000V rated) high voltage insulated gloves, leather overgloves, and safety goggles when working on high voltage battery systems. Remove all jewelry and metal objects before starting work.

  • Always disconnect low voltage power before beginning any high voltage system work.

  • After installation, verify resistance is within the acceptable factory range: 0.050mΩ (50 microohms) to 0.195mΩ (195 microohms) using a Hioki RM 3548 microohm meter.

  • After physical installation, connect a laptop with Tesla Toolbox software, navigate to High Voltage > Procedures > Shunt Replacement > Write Shunt Resistance, input your measured resistance value (in nΩ), select Cyntec as the shunt type, and run the calibration procedure.

  • After calibration, perform a battery health test through your vehicle touchscreen to confirm proper operation.

🎯 Common Replacement Scenarios

⚡ When Do You Need To Replace This Part?

  • Failed current sensor triggering BMS error codes and dashboard warning messages

  • Out-of-spec resistance readings identified during Hioki diagnostic testing

  • Damaged shunt plate from previous high voltage battery service or repair

  • Inaccurate battery state of charge readings or inconsistent range estimates

  • Incorrect battery health percentage reporting to the vehicle and driver

  • BMS system inability to properly calibrate high voltage battery performance

🚗 Compatible Vehicle List

  • Tesla Model 3 (2016 through 2025) all trim levels

  • Tesla Model Y (2020 through 2025) all trim levels

  • RWD Single Motor and AWD Dual Motor models

  • Performance, Long Range, and Standard Range variants

  • Non-structural high voltage battery pack configurations

Required Calibration Tools:

Hioki RM 3548 microohm resistance meter, Tesla Toolbox software, certified high voltage insulated tools

📦 Package Contents

1 x HV Battery AMP Chip Shunt Plate Module (OE Number: 1078835-00-G)
