Tesla Model Y Brake Pedal assembly 1189691-51-A Electric 393kw 2022 Rhd

Product Price
$ 22.86 In Stock
SKUAT100639
MOQ1
KG/Piece1.00 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Model Model 3 Model Y
RH/LH Behind RH/LH Front LH Front RH Behind LH Behind RH Brake Pedal
Quantity

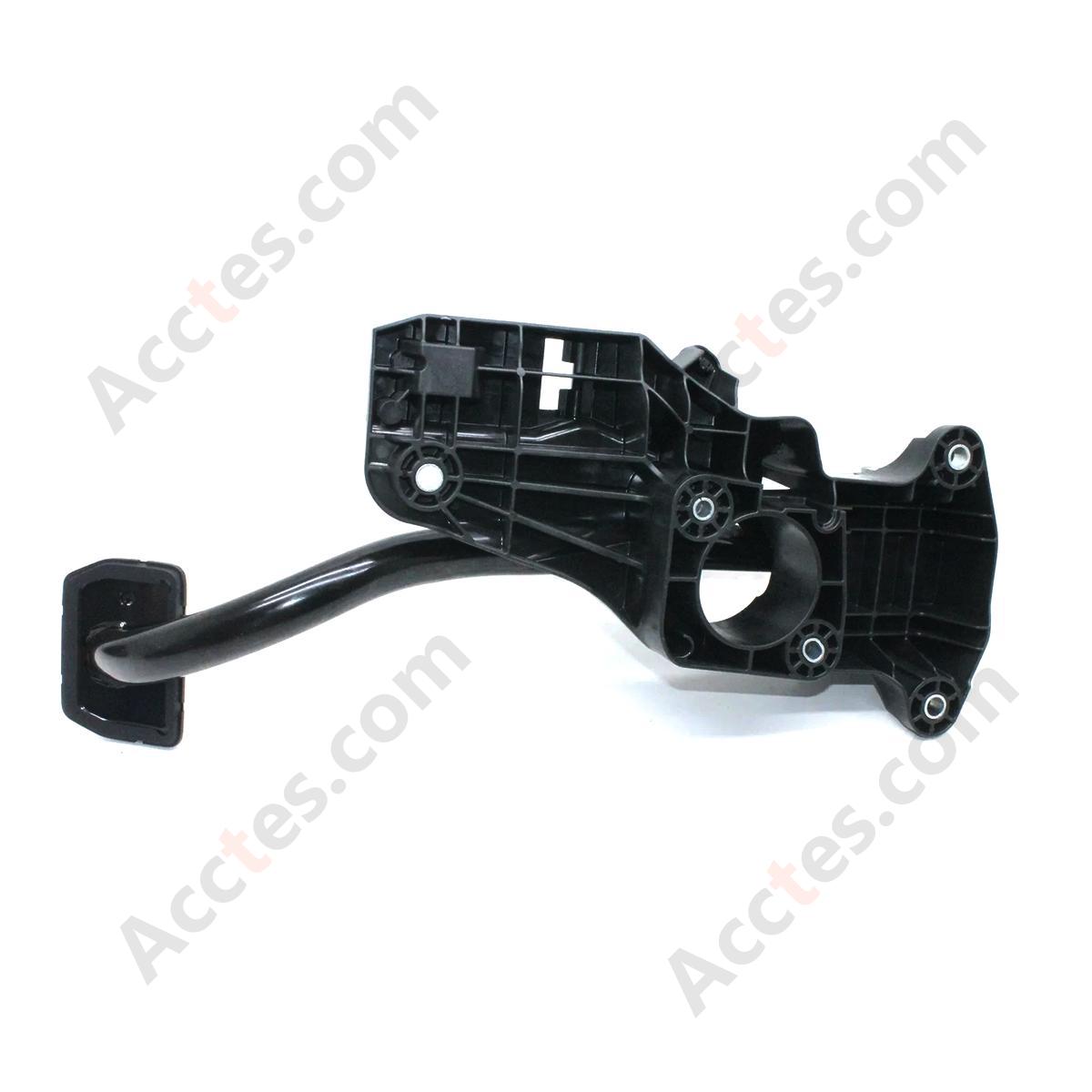

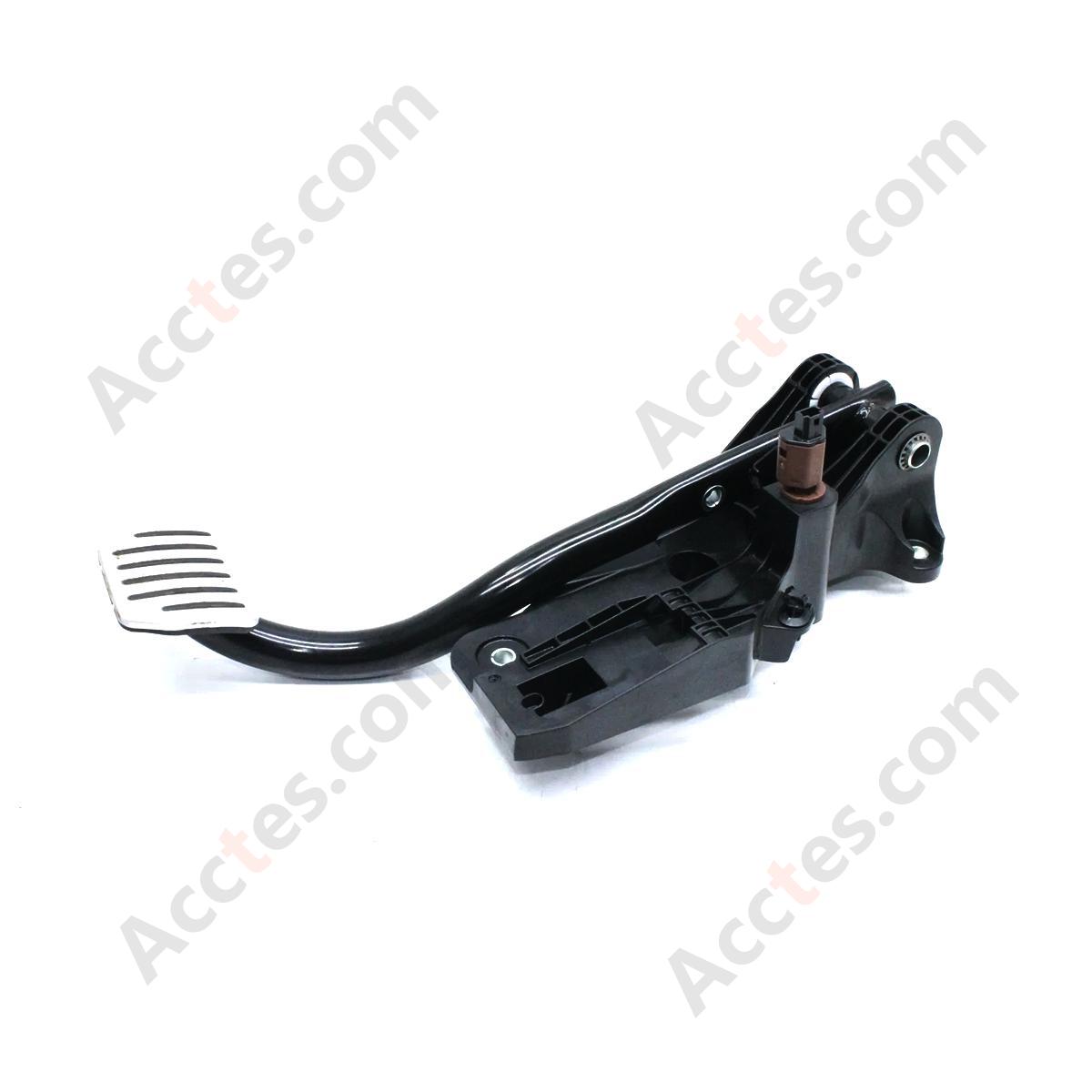

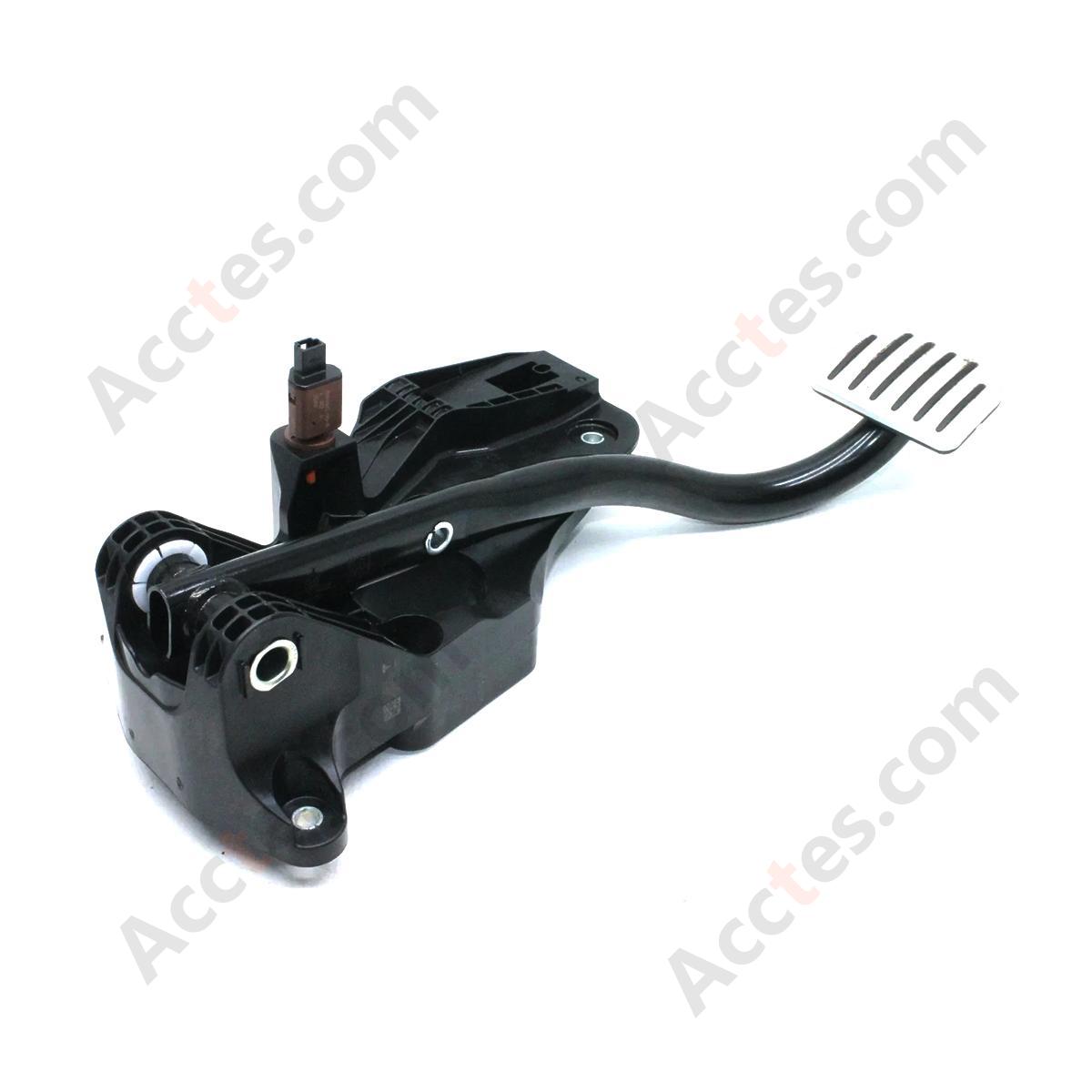

Genuine Tesla Model Y Brake Pedal Assembly - Right Hand Drive (RHD) 393kW 2022+ - OE #1188691-51-A

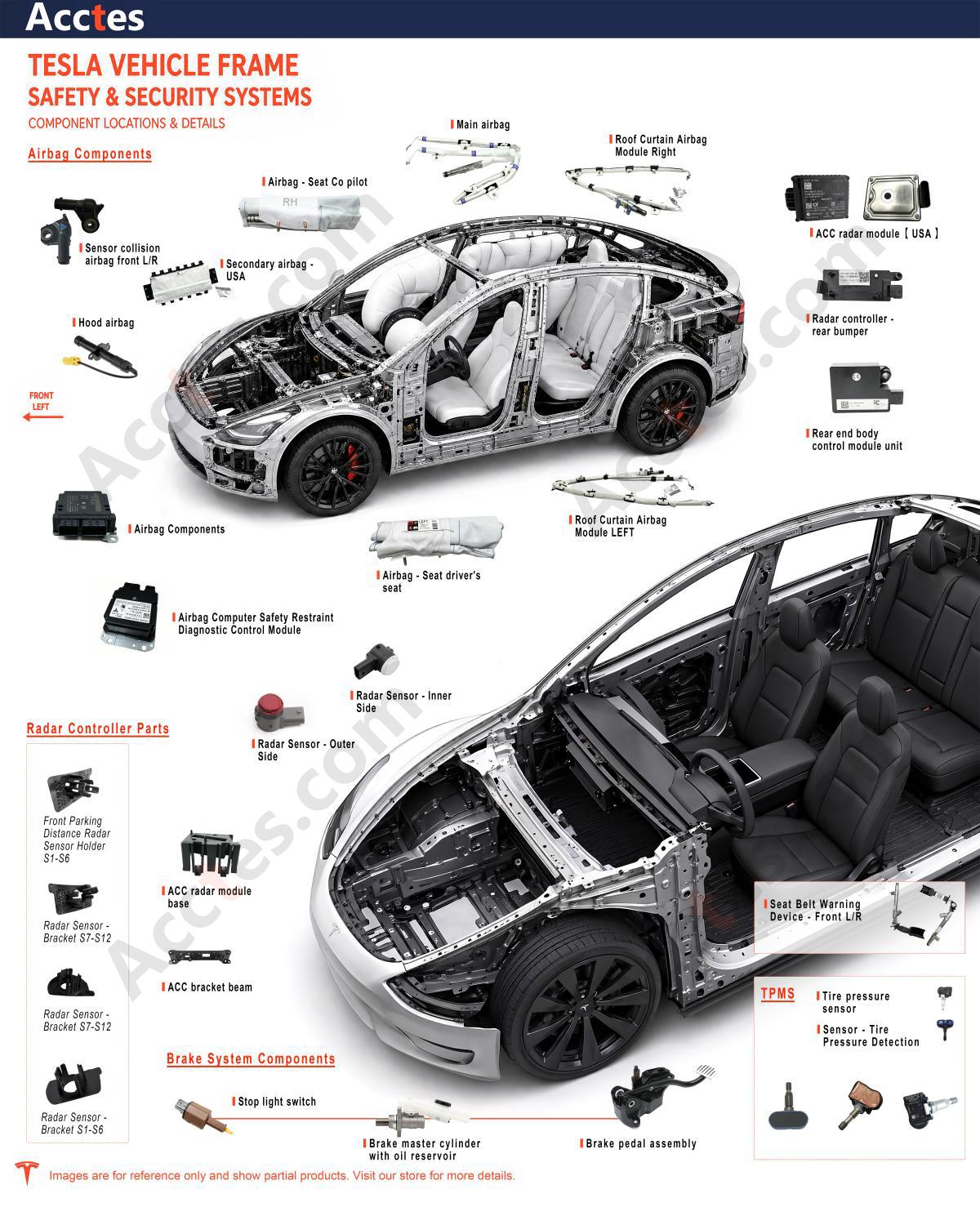

4.Car Electronics-Safety & Security.jpg


Product Overview

This is a brand-new genuine OEM brake pedal assembly designed specifically for Tesla Model Y 393kW right-hand drive (RHD) vehicles manufactured from 2022 onwards. As a critical replacement part for your Tesla's brake system, this assembly delivers factory-matching performance and durability to restore safe, reliable braking functionality.

Engineered as a direct replacement for the original equipment, this complete assembly includes the brake foot lever and integrated brake stop sensor, meeting all Tesla's original manufacturing specifications for a perfect fit and long service life.

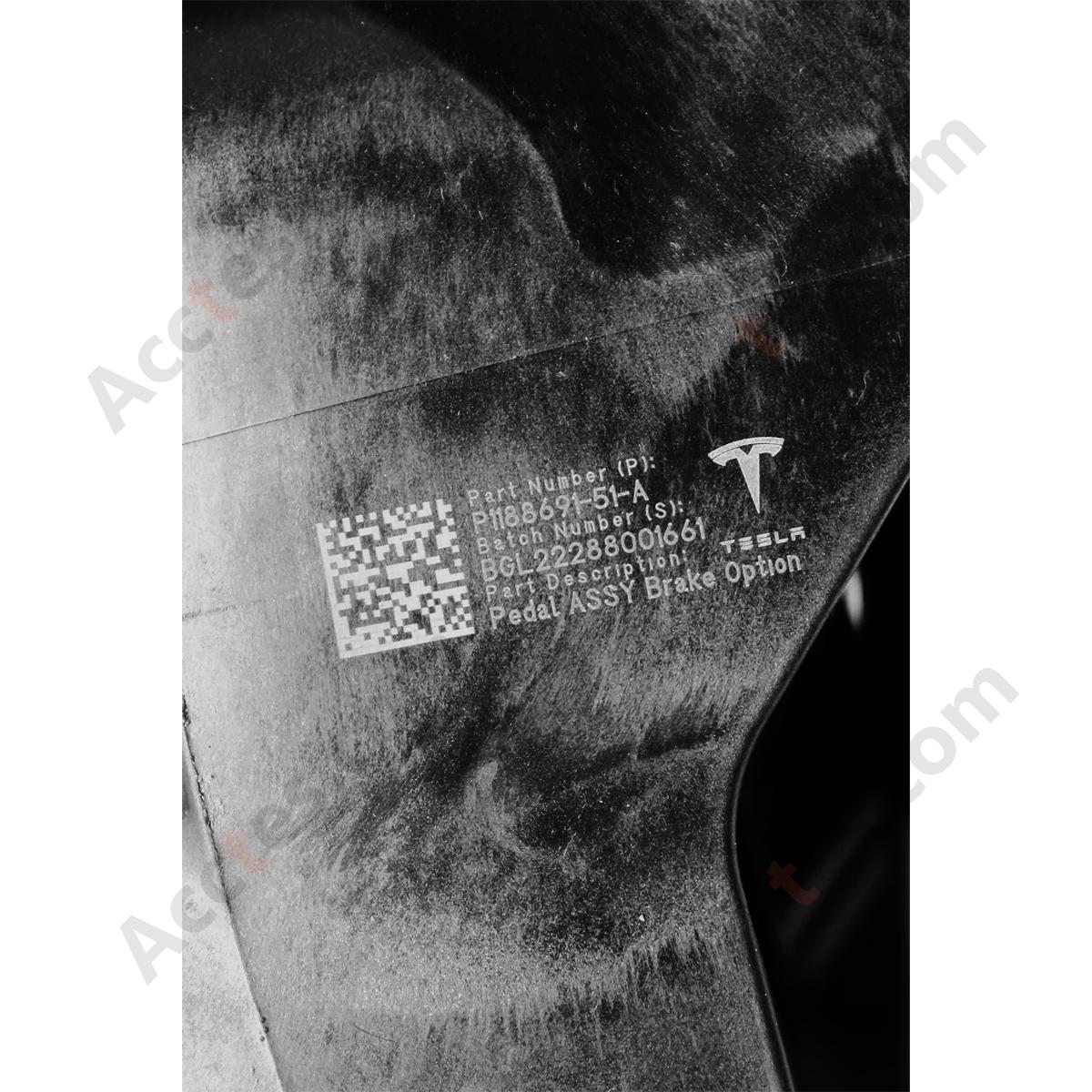

Genuine OE Part Number: 1188691-51-A

Key Features

  • ✅ Brand-new, unused condition in original manufacturer packaging

  • ✅ Genuine OEM part directly compatible with Tesla manufacturing standards

  • ✅ Complete assembly including brake foot lever and brake stop sensor

  • ✅ Direct fit replacement, no modification required for installation

  • ✅ Constructed from durable black metal with non-slip rubber pedal pad for long-lasting use

  • ✅ Designed specifically for right-hand drive (RHD) Model Y vehicles

  • ✅ Restores original brake pedal feel and braking system responsiveness

Technical Specifications

SpecificationDetail
ConditionBrand New
OE/OEM Part Number1188691-51-A
BrandTesla
Compatible VehicleTesla Model Y 393kW (2022 onwards)
Placement on VehicleDriver Footwell, Right Hand Drive (RHD)
Fitment TypeDirect Replacement
Material & ColorBlack Metal Frame + Non-Slip Rubber Pedal Pad

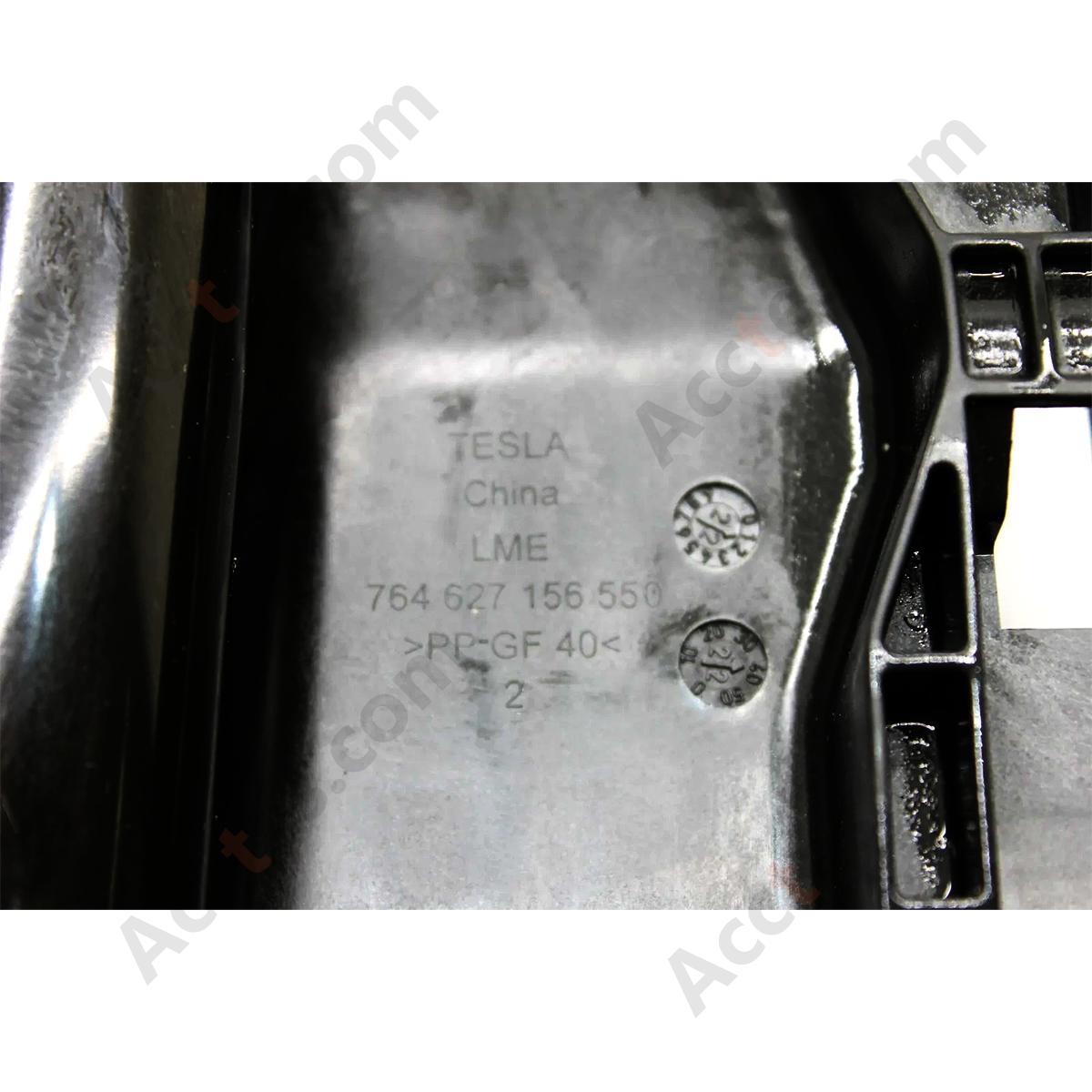

Country of OriginChina
UPCDoes not apply

Compatible Applications

  • Tesla Model Y 393kW Performance (Right Hand Drive) - 2022 onwards

  • Replacement for worn, damaged or faulty original brake pedal assemblies

  • Collision repair and full system brake overhauls

  • Maintenance replacement for vehicles with faulty brake stop sensors

Recommended Installation Guide

⚠️ Important Safety Notice: Always disconnect the vehicle's low voltage battery before beginning any brake system work. We recommend installation by a certified Tesla service technician.

  1. Ensure the vehicle is parked on level ground, all power systems are off, and the low voltage battery is disconnected.

  2. Remove the driver footwell sound insulation panel to access the brake pedal assembly.

  3. Disconnect the brake booster ECU wiring harness connector and brake fluid level sensor connector.

  4. Remove the securing nuts for the master cylinder primary and secondary pipes (recommended tool: 12mm hex flare nut wrench).

  5. Remove the cotter pin securing the brake U-clamp pin to the pedal assembly, then remove the U-clamp pin to separate the pedal from the iBooster rod.

  6. Remove and discard the two old nuts securing the assembly to the bulkhead, then remove the original brake pedal assembly.

  7. Align the new brake pedal assembly with the iBooster rod, position it on the bulkhead, and install new mounting nuts (Torque: 16.5 Nm / 12.2 lbs-ft).

  8. Install the brake U-clamp pin and secure with a new cotter pin.

  9. Reinstall the master cylinder pipe nuts and torque to 18 Nm / 13.3 lbs-ft.

  10. Reconnect all wiring connectors, reinstall interior trim panels and the footwell insulation.

  11. Reconnect the low voltage battery, bleed and refill the brake system with new brake fluid.

  12. Perform a road test to verify proper brake pedal feel and braking performance. Add calibration code 00040100 to your service order after installation.

Required recommended tools: 12mm hex flare nut wrench, 3/8" drive 13mm deep socket, torque wrench, absorbent shop cloths.

Package Contents

  • 1 x Complete Tesla Model Y Right Hand Drive Brake Pedal Assembly (OE 1188691-51-A) including integrated brake stop sensor
