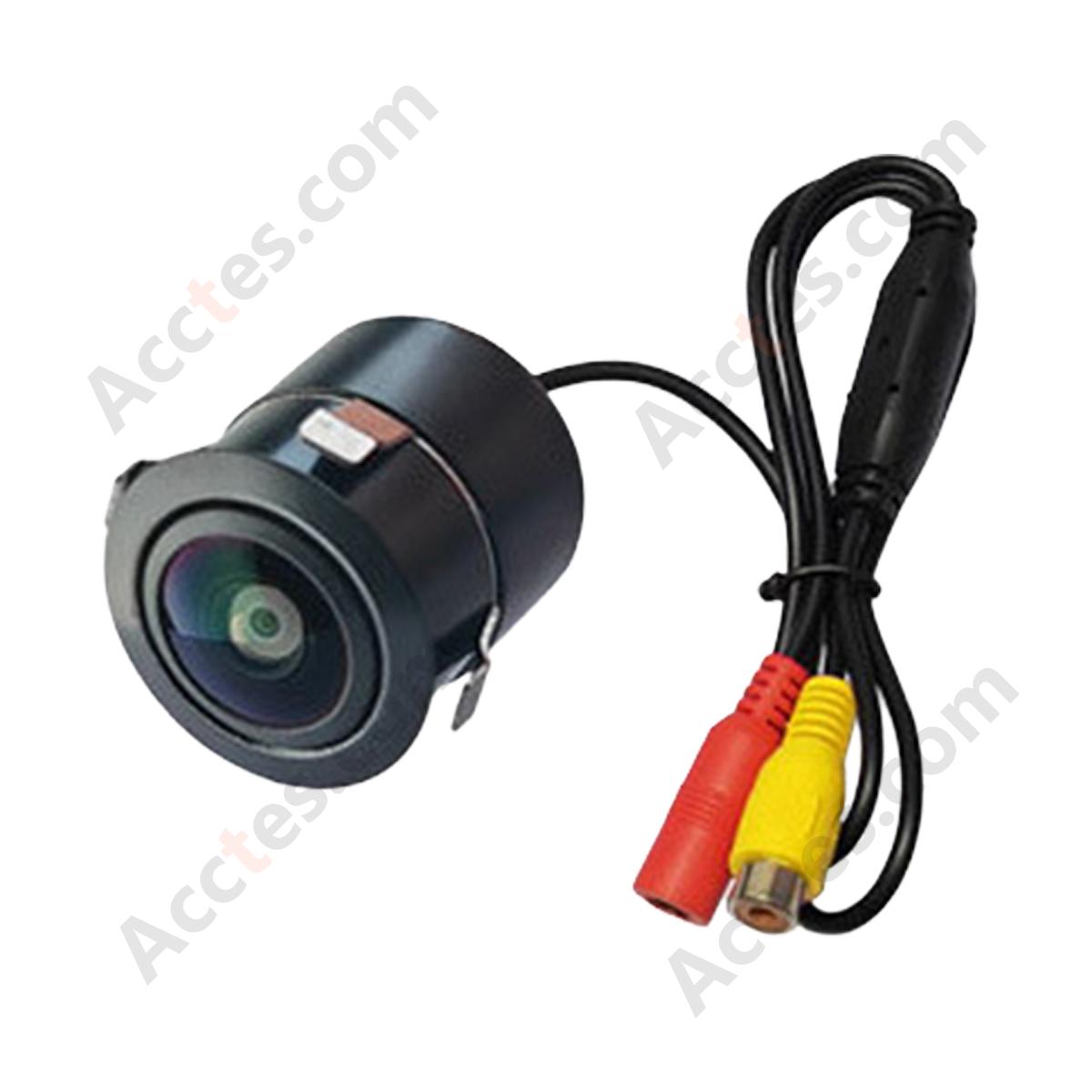

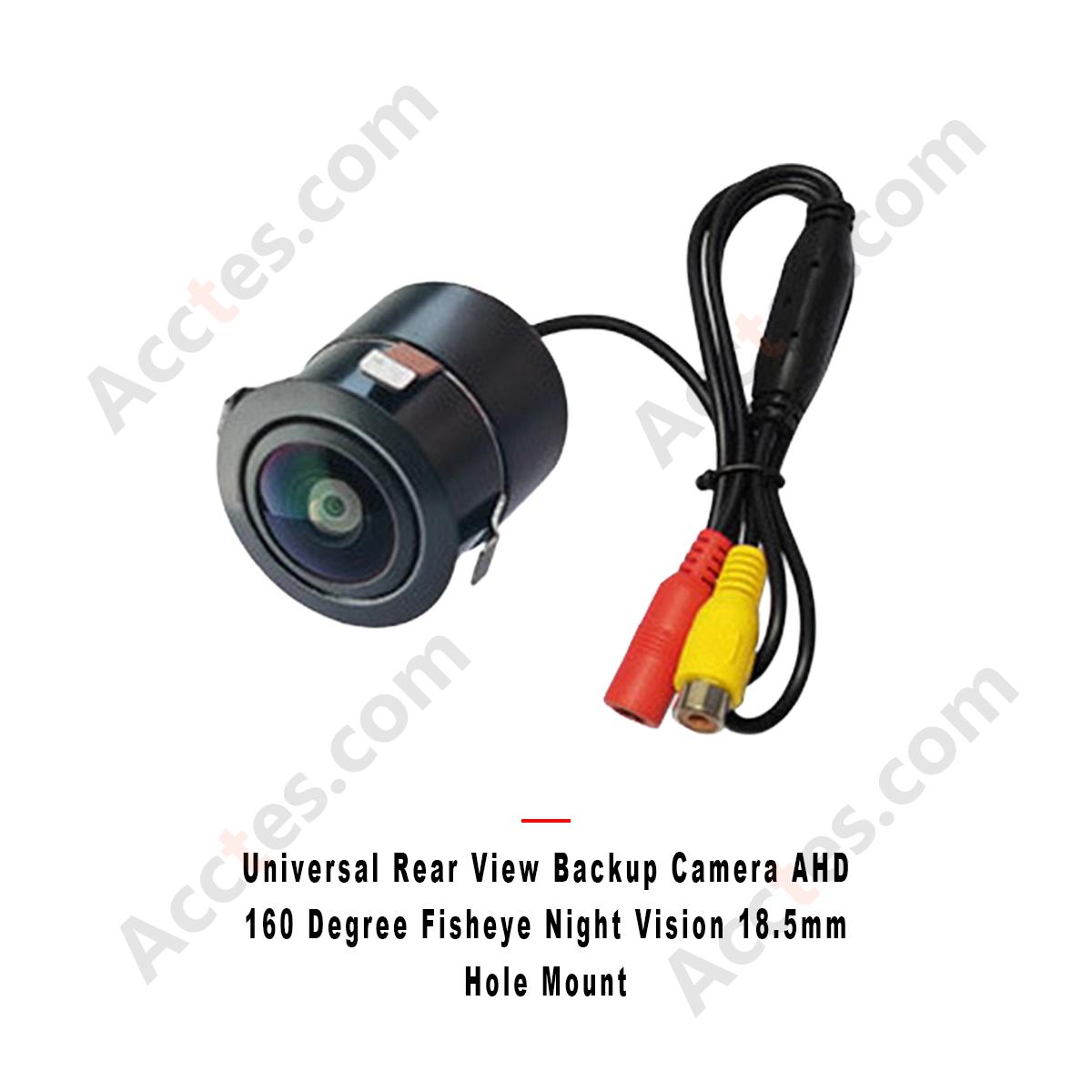

Universal Rear View Backup Camera AHD 160 Degree Fisheye Night Vision 18.5mm Hole Mount

Product Price
$ 4.14 In Stock
SKUTY001657
MOQ1
KG/Piece0.15 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Version & Mount AHD 160° Fisheye External Mount AHD AHD 160° Fisheye 18.5mm Hole Mount AHD 4K Aurora Chip External Mount
Quantity

Universal Rear View Backup Camera AHD 160 Degree Fisheye Night Vision (18.5mm Hole Mount)

4、Car Electronics.jpg

Product Overview

Upgrade your vehicle safety with this universal AHD rear view backup camera, designed to eliminate blind spots and deliver clear visibility in any light condition. Featuring a wide 160° fisheye lens, top-tier starlight night vision, and rugged IP68 waterproof construction, this camera fits nearly all passenger cars, trucks, SUVs, RVs, and pickups through a standard 18.5mm mounting hole.

Engineered for easy installation and universal compatibility, this backup camera works with most aftermarket AHD and CVBS head units, delivering crisp high-definition video to keep you safe while reversing, parking, or navigating tight spaces.

Key Features

  • ✓ 160° wide-angle fisheye lens for maximum rear coverage, minimizing blind spots

  • ✓ Selectable AHD resolution: 720P and 1080P options available

  • ✓ Professional-grade starlight night vision with 30 meter viewing range

  • ✓ IP68 100% waterproof rating for reliable use in rain, snow, and car washes

  • ✓ Convenient 18.5mm flush hole mount design for clean, integrated installation

  • ✓ Switchable AHD/CVBS signal for compatibility with most aftermarket head units

  • ✓ Toggleable parking guide lines to match your installation preferences

  • ✓ Universal fit for nearly all vehicles: cars, trucks, SUVs, RVs, and pickups

Technical Specifications

SpecificationDetails
Lens Type160° Fisheye Wide Angle
Resolution OptionsAHD 720P / AHD 1080P (1920*720)
Signal CompatibilitySwitchable AHD / CVBS, Supports NTSC/PAL
Night VisionTop-Tier Starlight Night Vision, 30m Range
Waterproof RatingIP68 100% Waterproof
Mounting Hole Size18.5mm
Operating VoltageDC 12V-24V
Power Consumption0.5W
Parking Guide LinesToggleable On/Off
CertificationsISO, CE, RoHS, LVD
Product Weight150g (0.15kg)

Applications & Compatible Vehicles

This universal backup camera is designed for flexible use across nearly all vehicle types, and can be configured for rear view, front view, or side view applications:

  • Passenger cars of all makes and models

  • Full-size and light-duty trucks

  • SUVs, crossovers, and minivans

  • RVs, campers, and travel trailers

  • Pickup trucks and commercial work vehicles

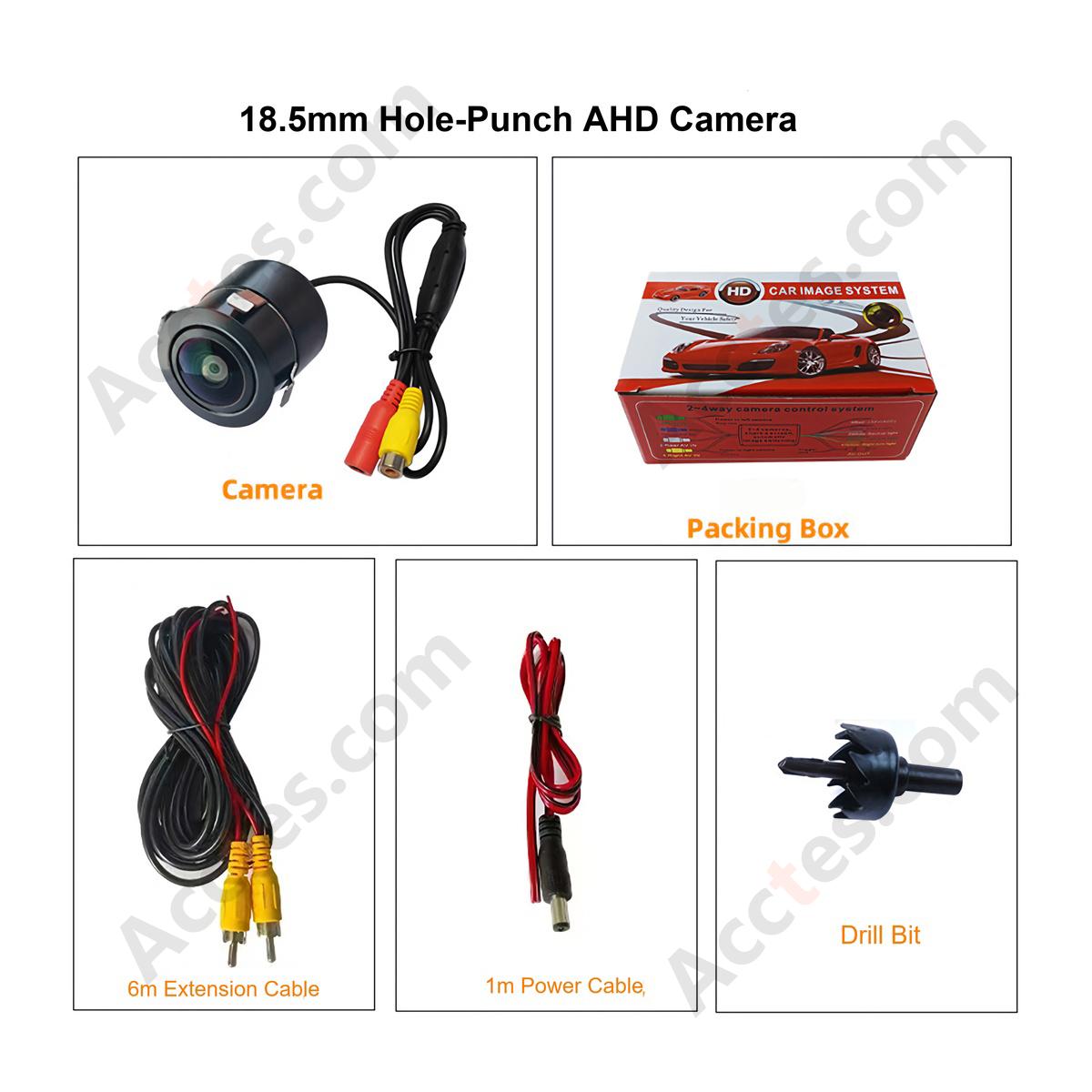

Package Contents

  • • 1 x Universal AHD 160° Fisheye Backup Camera (18.5mm Mount)

  • • Shielded high-quality copper-core video cable

  • • Mounting hardware and installation instructions

Note: If using with an AHD-compatible head unit, cut the orange wire loop to enable AHD signal. Restart your head unit after adjusting wire settings for correct operation. If your head unit does not support AHD, leave the orange wire loop intact to use default CVBS output.
