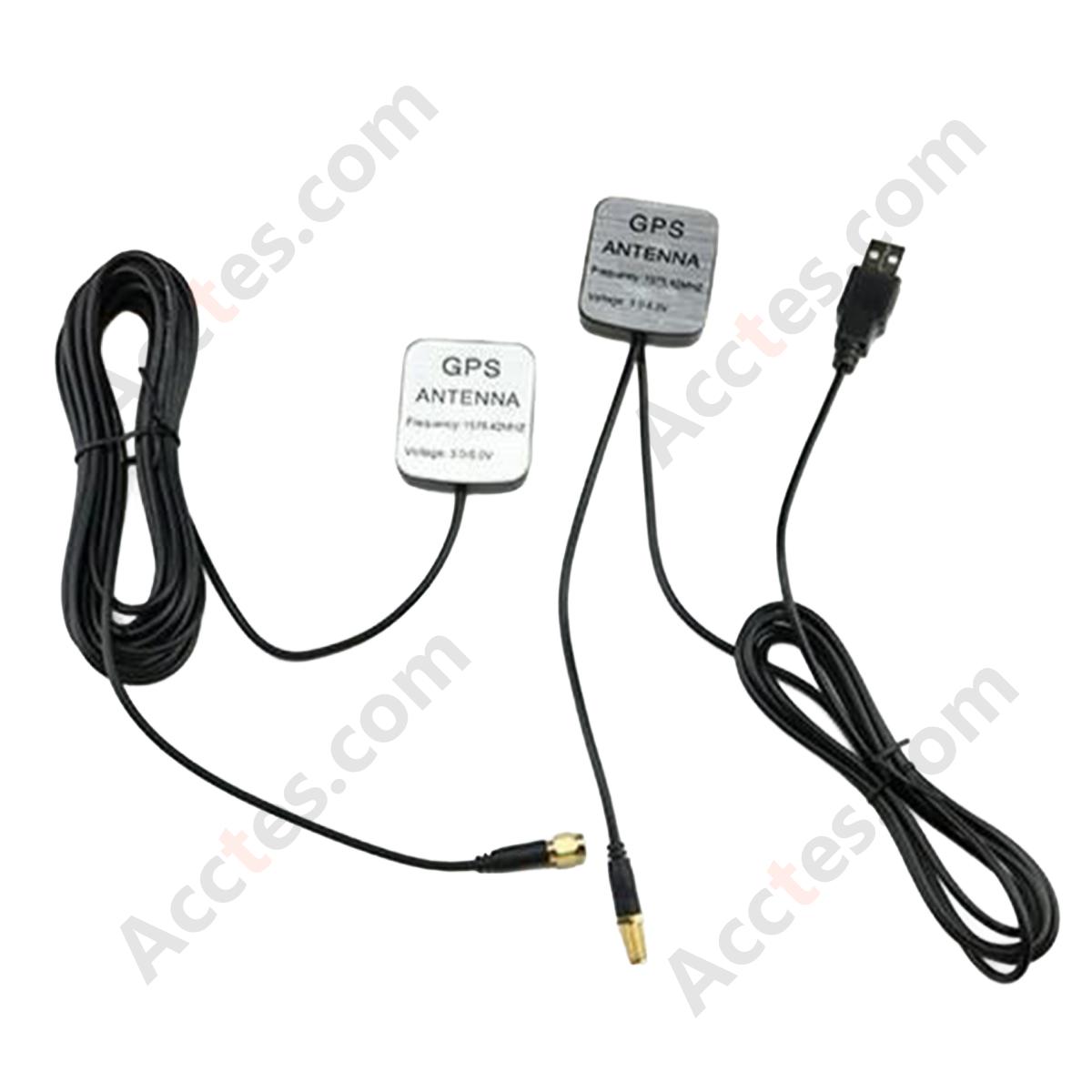

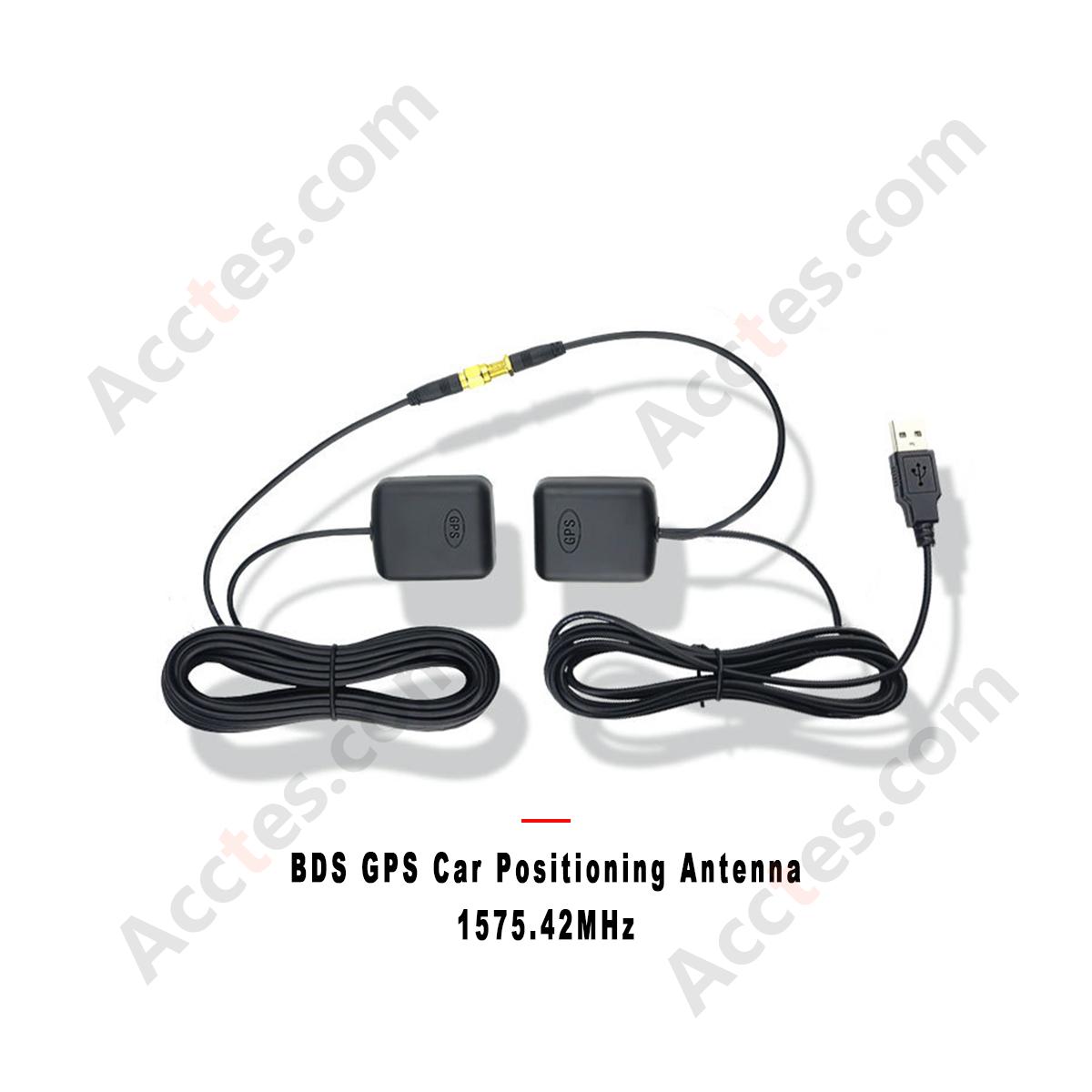

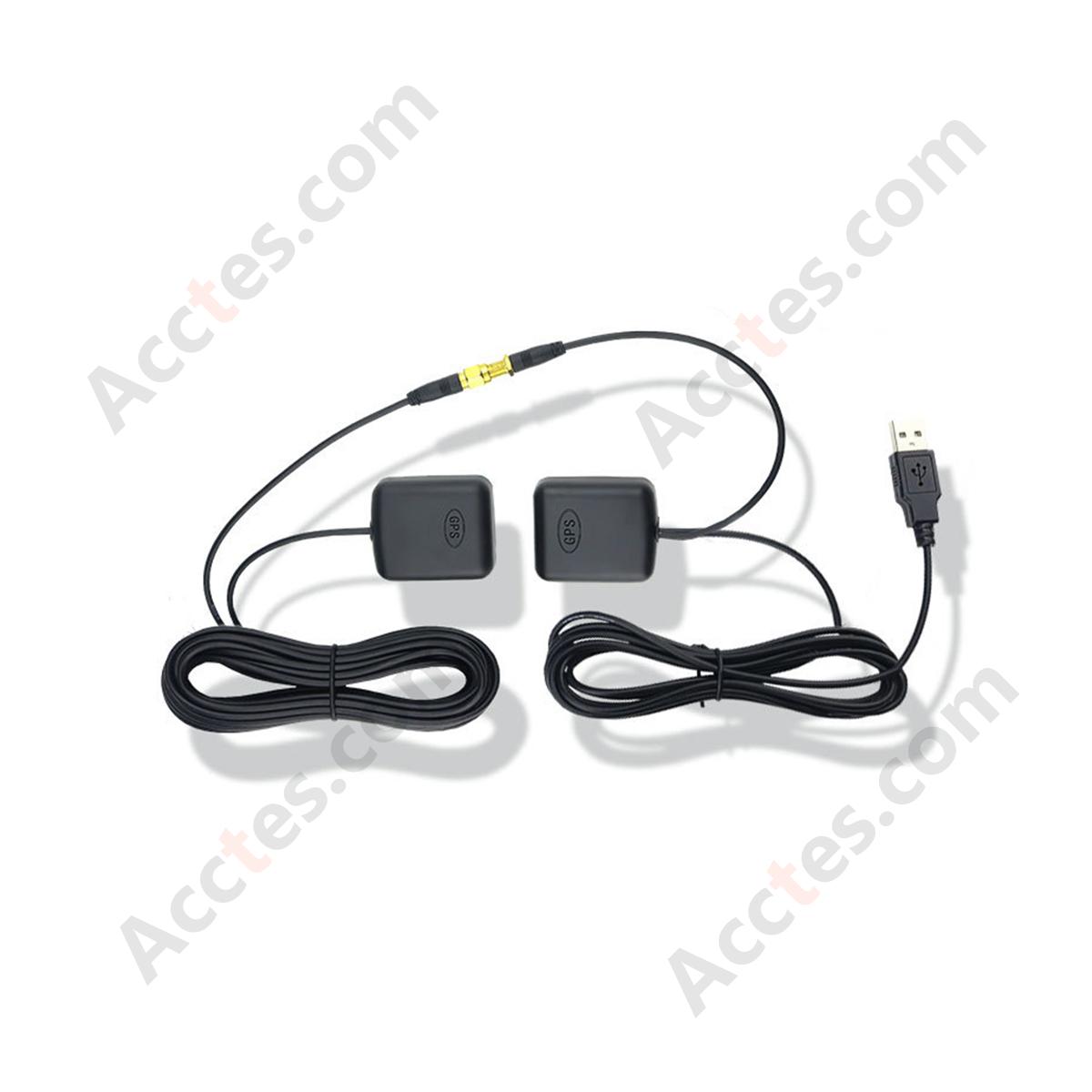

1575.42MHz GNSS BDS GPS Car Navigation Positioning Antenna

Product Price
$ 4.57 In Stock
SKUTY001623
MOQ1
KG/Piece0.10 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Antenna Type SMA Male GPS+BDS Antenna Square GPS Antenna GNSS GPS+BDS Combined Antenna
Quantity

1575.42MHz GNSS BDS GPS Car Navigation Positioning Antenna

4、Car Electronics.jpg

Product Overview

This high-performance dual-system GNSS positioning antenna is purpose-built for automotive navigation, vehicle tracking, and location-based applications. Designed to support both GPS and BeiDou (BDS) satellite networks, it delivers reliable, accurate positioning even in challenging urban and suburban environments with signal obstructions.

Built with high-quality high-dielectric ceramic media and optimized low-noise amplifier (LNA) circuitry, this antenna provides fast signal lock, excellent interference rejection, and consistent performance across extreme temperature and weather conditions, meeting automotive-grade reliability standards.

Key Features

  • ✓ Dual-system support for GPS (1575.42MHz) and BDS (1561.098MHz) for increased satellite availability and positioning reliability

  • ✓ Right-hand circular polarization for excellent multipath interference rejection in dense urban environments

  • ✓ High-gain low-noise amplifier design with noise coefficient<1.5dB for clear signal reception in weak signal areas

  • ✓ Premium high-dielectric ceramic substrate with optimized silver layer shaping for precise frequency matching

  • ✓ Built-in band-pass filter with excellent out-of-band signal suppression to reduce system lock loss risk

  • ✓ Automotive-grade temperature resistance (-40°C to 85°C) with high mechanical strength and corrosion resistance

  • ✓ IP67 waterproof and dustproof rating for reliable outdoor operation in all weather conditions

  • ✓ Standard SMA-J connector for broad compatibility with most automotive navigation receivers and GNSS modules

Technical Specifications

SpecificationValue
Supported Frequency BandsGPS L1: 1575.42MHz ±1.023MHz
BDS B1I: 1561.098MHz ±2.041MHz
Antenna Gain≥3dBi (up to 30dBi with active LNA amplification)
PolarizationRight Hand Circular Polarization (RHCP)
DirectionalityOmnidirectional
Output Impedance50Ω
VSWR (Standing Wave Ratio)≤2.0:1
Noise Figure< 1.5dB
LNA Gain28 ±3dB
Out-of-band Attenuation≥25dB @ f±50MHz
Maximum Power Handling0.25W
Operating Voltage3V ~ 5.5V DC
Operating Current8mA ~ 30mA
Connector TypeSMA-J (SMA male) / Custom options available
Standard Cable Length0.4m (Custom lengths available)
Operating Temperature-40°C ~ +85°C
Storage Temperature-40°C ~ +90°C
Ingress Protection RatingIP67

Applications & Use Cases

  • Automotive in-dash navigation systems

  • Vehicle GPS tracking and fleet management

  • Commercial vehicle telematics systems

  • Portable navigation devices

  • Unmanned aerial vehicles (drones)

  • Agricultural precision positioning equipment

  • Geographic surveying and mapping

  • Smart wearable location devices

  • Marine navigation systems

  • General GNSS positioning receiver projects

Package Contents

  • 1 x 1575.42MHz GNSS BDS GPS Car Navigation Positioning Antenna

  • Custom cable lengths and connector options available upon request

Part Number: 27013148   Model: ASMAM0015
