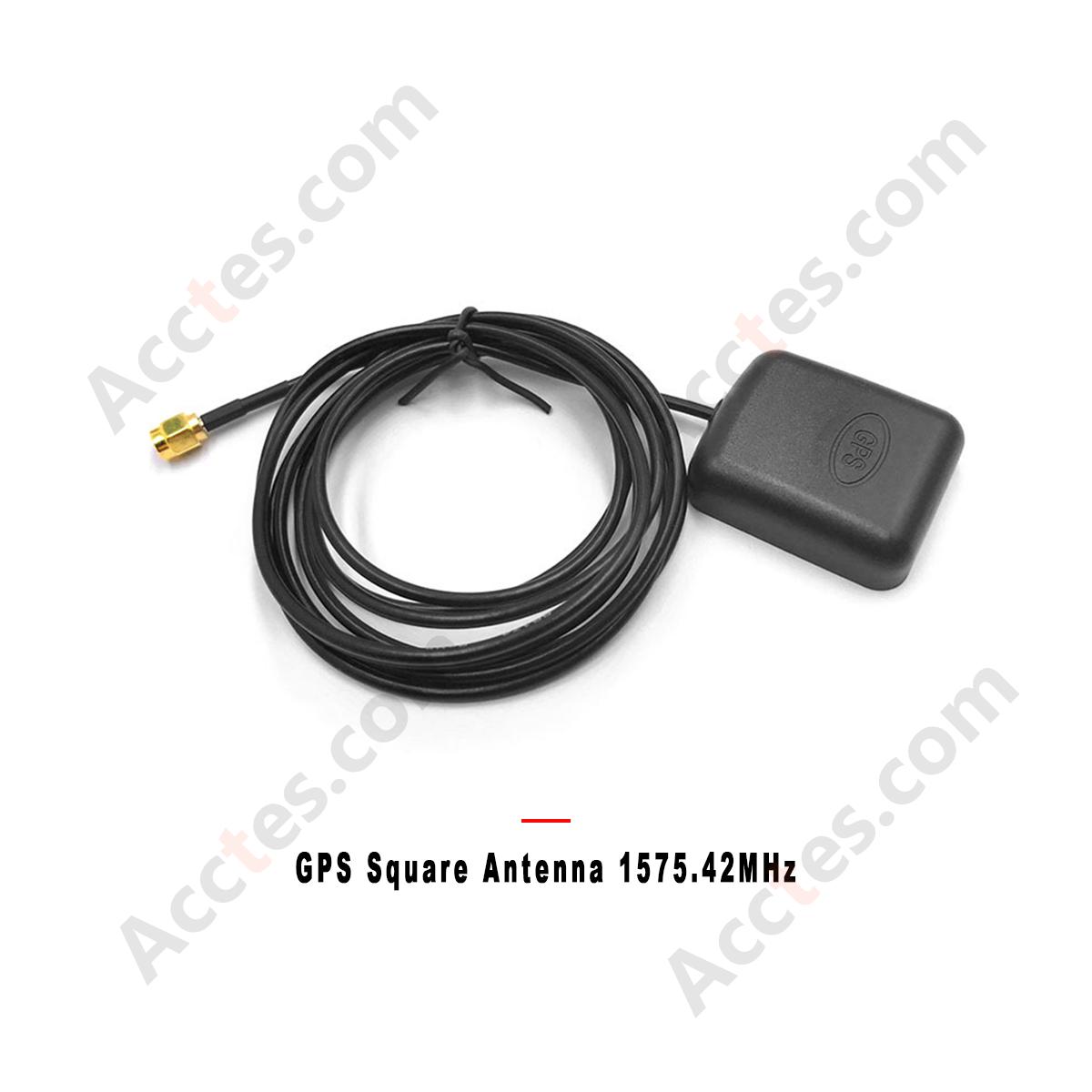

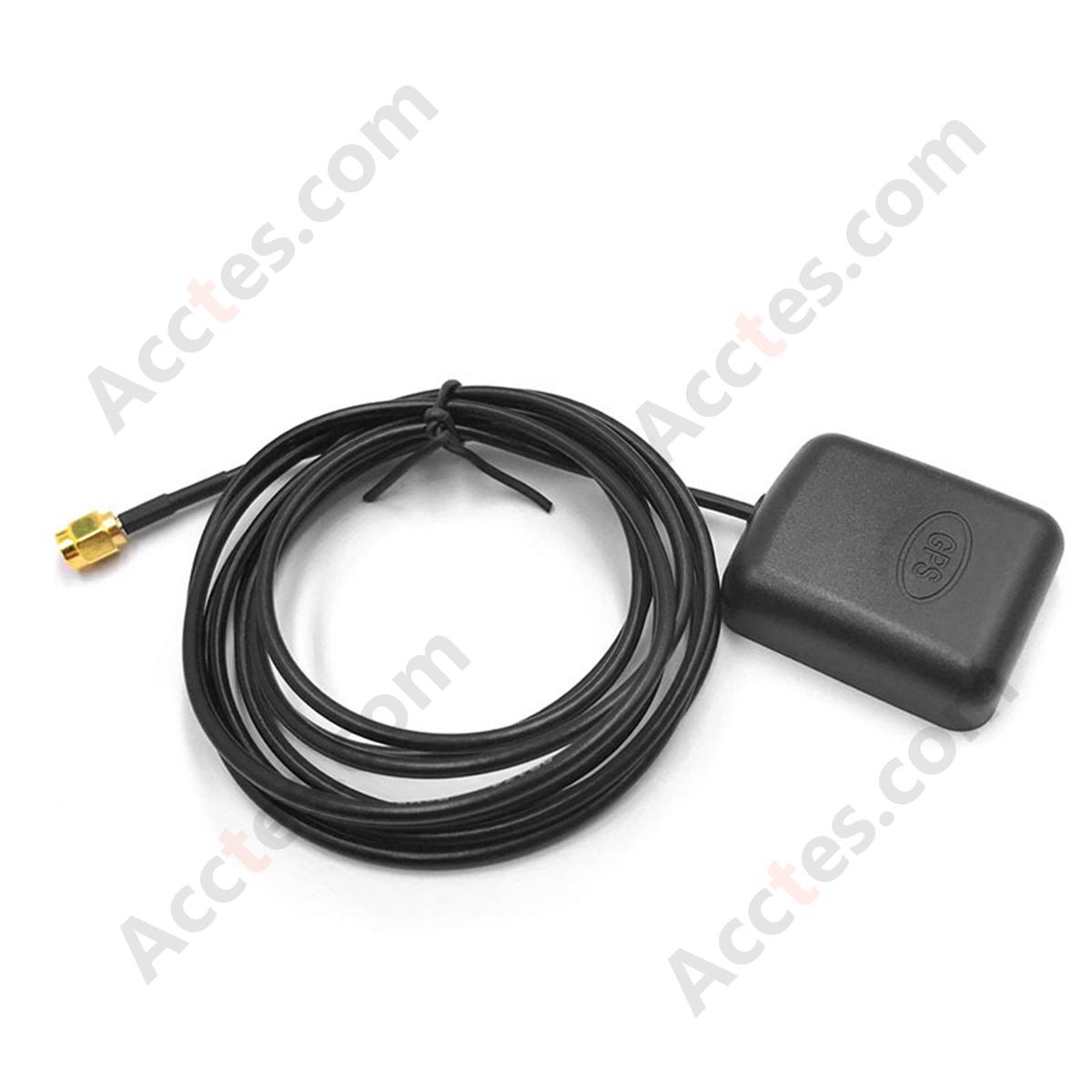

1575.42MHz Square GPS Antenna For Car Satellite Navigation

Product Price
$ 1.71 In Stock
SKUTY001622
MOQ1
KG/Piece0.10 KG
Returns30 days returns. Buyer pays for return shipping. If you use an Acctes shipping label, it will be deducted from your refund amount.
See details
Antenna Type SMA Male GPS+BDS Antenna Square GPS Antenna GNSS GPS+BDS Combined Antenna
Quantity

1575.42MHz Square GPS Antenna For Car Satellite Navigation

4、Car Electronics.jpg

Product Overview

This high-performance active square GPS antenna is engineered specifically for automotive satellite navigation systems, delivering reliable, high-sensitivity GPS signal reception at the standard 1575.42MHz GPS L1 frequency band. With integrated low noise amplification (LNA) and a compact square form factor, this antenna provides consistent positioning accuracy for in-vehicle navigation, tracking, and telematics applications.

Built with durable, weather-resistant materials and available with multiple connector options to fit most automotive GPS receivers, this antenna offers professional-grade performance at an exceptional value. It supports both magnetic and adhesive mounting for flexible installation on any vehicle.

Key Features

  • ✅ Optimized for standard GPS L1 frequency: 1575.42MHz ± 2MHz

  • ✅ Integrated high-gain Low Noise Amplifier (LNA) with low noise figure (< 2.0dB)

  • ✅ Compact square housing design ideal for discrete automotive installation

  • ✅ Right-Hand Circular Polarization (RHCP) for optimal GPS signal reception

  • ✅ Low VSWR (<= 1.5) and low signal loss design for maximum sensitivity

  • ✅ High efficiency ceramic/ABS construction with durable waterproof housing

  • ✅ Multiple connector options compatible with most major GPS receiver brands

  • ✅ Standard RG-174 low-loss coaxial cable available in multiple lengths

  • ✅ Flexible mounting options: magnetic base or adhesive sticker mount

  • ✅ RoHS compliant and meets automotive-grade environmental performance standards

  • ✅ Wide operating temperature range: -40°C to +85°C for all climate conditions

Technical Specifications

SpecificationValue

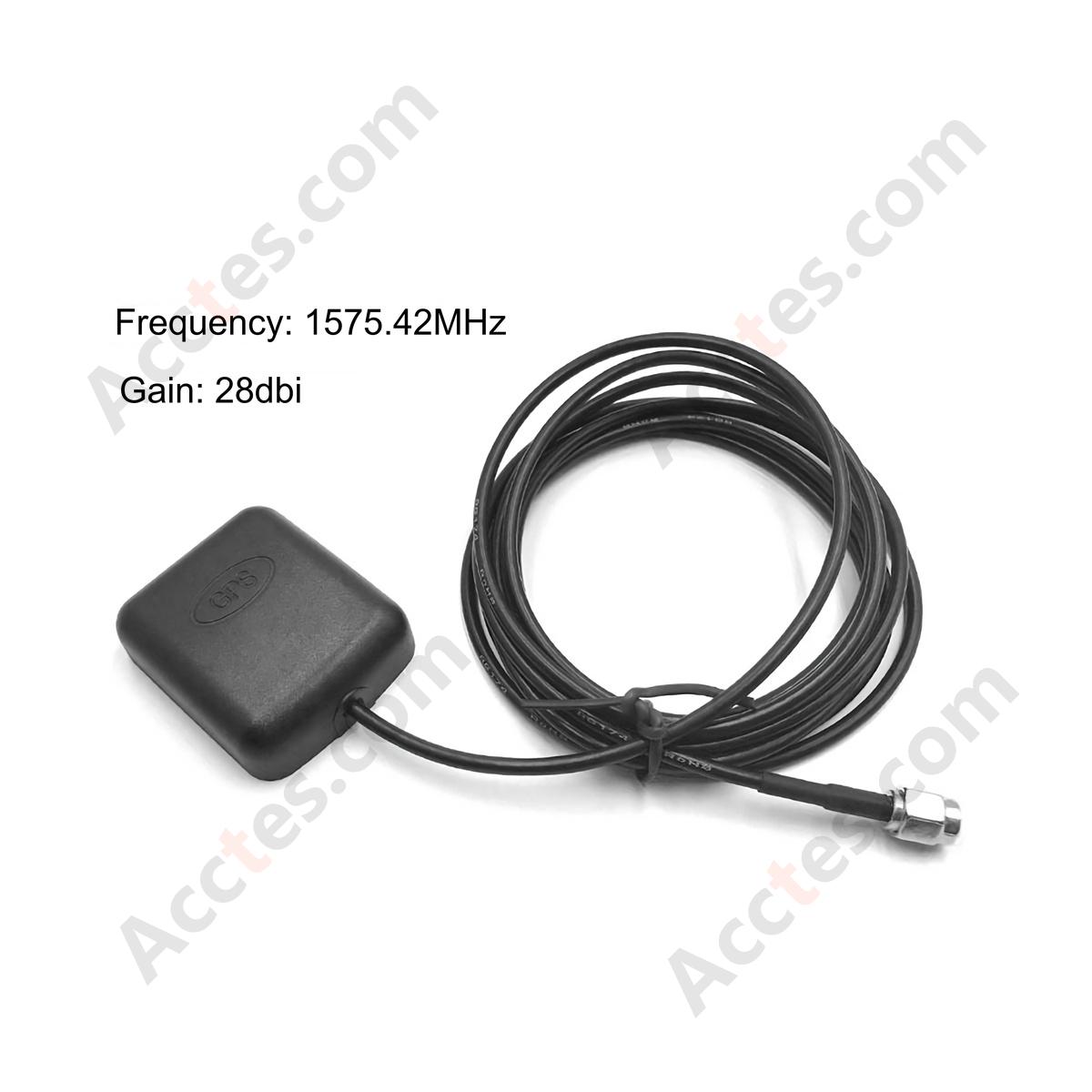

Working Frequency1575.42MHz ± 2MHz (GPS L1 Band)
Antenna Gain (Zenith)3 ± 0.5dBi to 30dBi (depending on model)
LNA Gain28 ± 3dB to 30 ± 3dB
Noise Figure< 2.0dB
VSWR (Center Frequency)≤ 1.5
PolarizationRight-Hand Circular Polarization (RHCP)
Axial Ratio≤ 3.0dB
Impedance50Ω
Antenna Efficiency≥ 55%
Supply Voltage3V ~ 5V DC
Current Consumption≤ 20mA

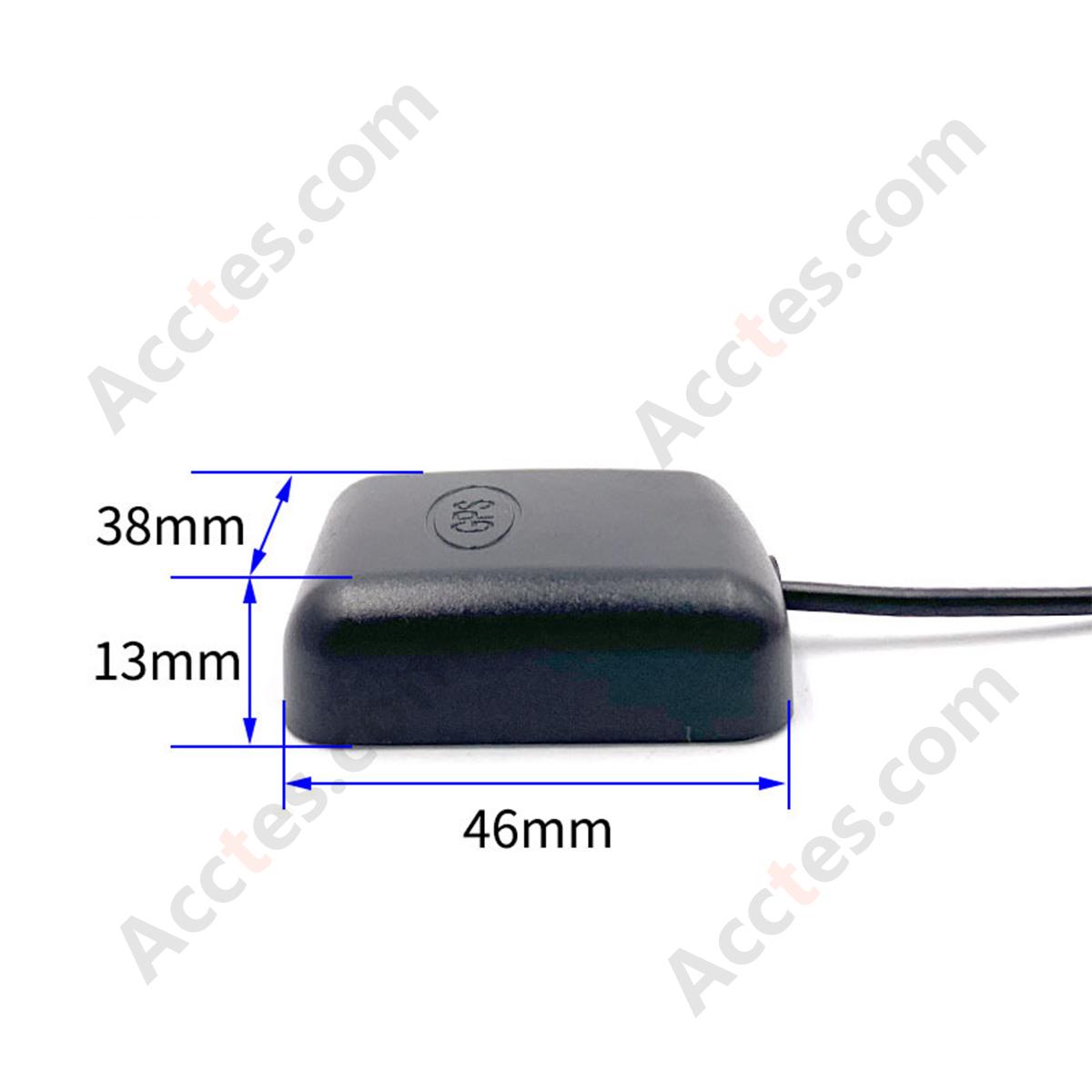

Dimensions (Antenna Housing)48.5 × 37 × 19mm
Cable TypeRG-174 Low-Loss Coaxial Cable

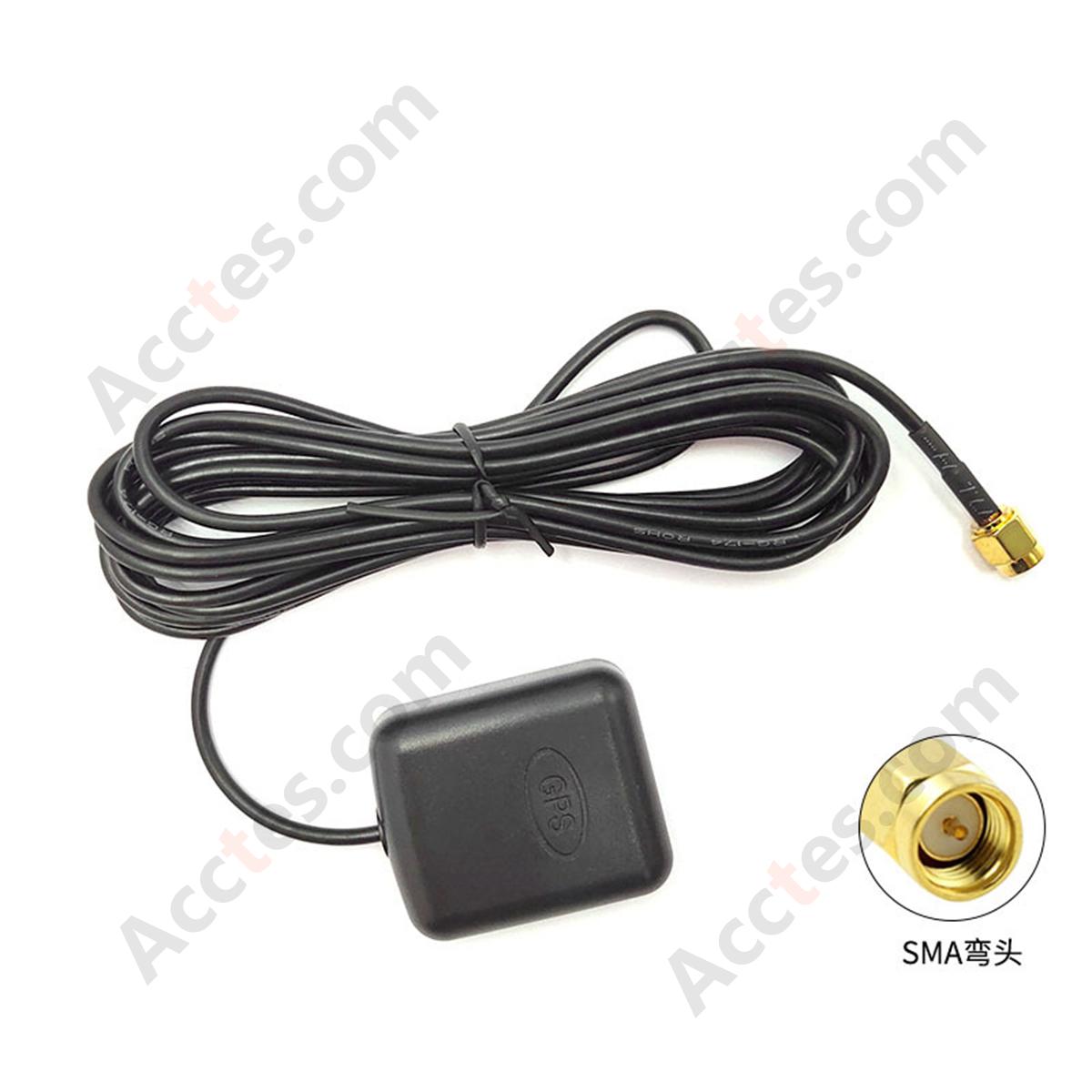

Available Connector OptionsSMA, BNC, MCX, MMCX, SMB, Fakra, GT5
Housing MaterialUV-Resistant ABS Plastic / Ceramic
ColorBlack
Mounting OptionsStrong Magnetic Base / Adhesive Sticker Mount
Weight< 110g (depending on cable length)
Operating Temperature-40°C ~ +85°C
Storage Temperature-45°C ~ +85°C
Ingress ProtectionWater-resistant design for outdoor use

Applications & Use Cases

🚗 Automotive

  • Aftermarket car satellite navigation systems

  • Factory OEM navigation replacement

  • Vehicle GPS tracking and telematics systems

  • Car fleet management and monitoring

  • Marine navigation systems

📡 Industrial & Commercial

  • GPS signal synchronization for communication systems

  • Asset tracking and monitoring devices

  • Timing and synchronization infrastructure

  • GNSS receivers and positioning systems

  • Outdoor and harsh environment positioning applications

Package Contents

  • 1 x 1575.42MHz Square Active GPS Antenna

  • Pre-attached RG-174 coaxial cable with selected connector

  • Mounting hardware (magnetic base or adhesive pad, depending on configuration)

  • Anti-static polybag packaging

Note: This antenna is compatible with most GPS receivers that accept an external 1575.42MHz antenna. Please confirm your required connector type and cable length before ordering. Bulk pricing is available for orders of 100+ units.
